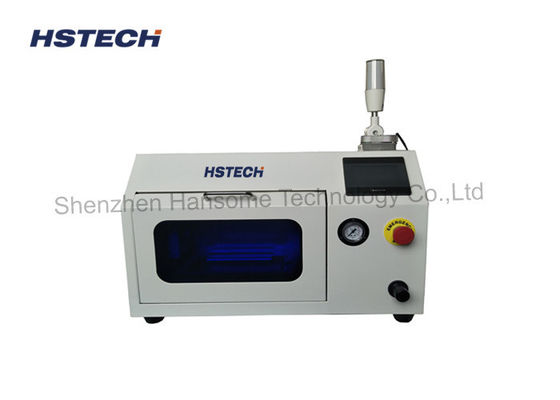

Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles

Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles
Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles

Large Image :  Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-801
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 10~12 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Chip Mounter Nozzle Cleaner Power Supply: 200W
Machine Color: White Nozzle Capacity: Max 30pcs
Machine Weight: 45kg Machine Size: 598*396*365mm
High Light:

pcb cleaning equipment

,

circuit board cleaning equipment

Touch Screen Control Max Clean 30 Nozzles Automatic SMT Nozzle Cleaning Machine



Specification



Model HS-801
Air pressure 0.5~0.6Mpa
Air source Pure compressor air
Control mode Touch Screen
Jet pressure ≤0.4MPa
Air wastage Under 280NL/min
Water source D.I water
Water storage 800cc
Water consumption 300cc/hrs
Admission pipe/Drainpipe φ8/φ6
Nozzle tray Default 30 nozzles
Nozzle size 0201-2512inch
Noise 35-60dB































Product Features



1, Default place 30 nozzles,reduce time to chage nozzles by using the nozzle holder, achieve high efficiency.
2, Can compatible with nozzles of PANASONIC,FUJI,JUKI,SIPLACER,YAMAHA,SAMGUNG mounting machines. 3, Work with the compressor air for wahsing and drying.
4, Full inspection window for easy maintenance and operation.
5, Using Industrial pure water, not harmful for all types of nozzles and reflector panel.
6, With a malfunction alarm and emergency braking system, with overload protection system.
7, The machine with streamline design, elegant appearance;
8, Human design, press external buttons to achieve start and stop;
9, Touch screen + PLC distributed control, stable and reliable performance;
10, Centralized waste collection, easy maintenance.



Machine details



Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles 0Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles 1

Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles 2

Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles 3



Cleaning performance



Touch Screen SMT Cleaning Equipment SMT Nozzle Cleaning Machine Max Clean 30 Nozzles 4
