Certification: | CE | Product Name: | PCB Loader |
---|---|---|---|
Warranty: | 1 Year | Condition: | New |
Material: | Stainless Steel | Load Capacity: | Strong |
Application: | SMT PCB Assembly Production Time | Power Supply: | 1 PH AC 220V 50/60Hz |
High Light: | smt production line equipment,smt assembly equipment |

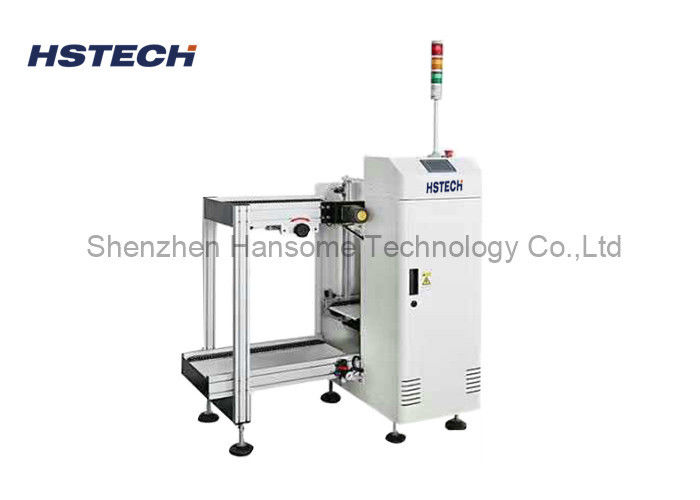

4 Pitch Seclection ESD Blet PCB Loader Board Handling Equipment
Features
1, Stainless steel machine body, durable.
2, Magazine quantity, top 1 pcs, and bottom 1 pcs, also can be customized.
3, ESD transport belt.
4, Reliable MITSUBISHI PLC.
5, Manual operation available.
6, 3 color tower light display.
7, Self diagnostic error detection.
8, SMEMA communication interface.
Application
This machine is used to push the boards from the magazines to the SMT production line.
Specification
Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
Conveyor belt | ESD 7mm belt | |||
Driving motor | 15W fixing speed motor | |||
Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
Air supply | 0.4~0.6Mpa | |||
Transport height | 920±20(mm) standard | |||
Loading time | 6 sec | |||
Magazine replace time | around 20 secs | |||
Transport direction | L to R, or R to L,optional | |||
PCB thickness | Min 0.4mm | |||
Pitches selection | 1-4(10mm step) | |||
Communication | SMEMA | |||
Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
Weight | Approx 140kg | Approx 180kg | Approx 220kg | Approx 230kg |
