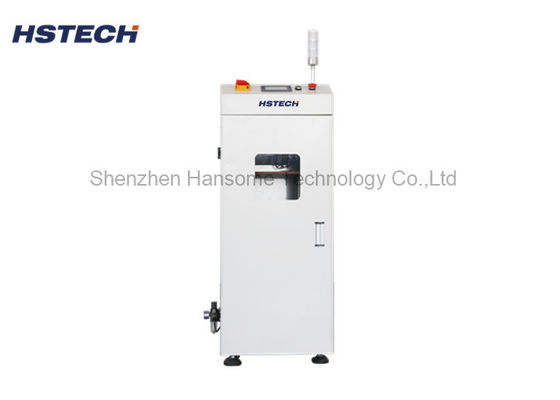

Large Capacity Vacuum PCB Handling Equipment Light Display One Year Warranty

Large Capacity Vacuum PCB Handling Equipment Light Display One Year Warranty
Large Capacity Vacuum PCB Handling Equipment Light Display One Year Warranty

Large Image :  Large Capacity Vacuum PCB Handling Equipment Light Display One Year Warranty

Product Details:
Place of Origin: China
Brand Name: HSTECH
Model Number: HS-330VL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Certification: CE Product Name: PCB Vacuum Loader
Power Supply: AC110V/AC220V,50/60Hz Color: Computer White
PLC: MITSUBISHI Optoelectronic Switch: OMRON
Material: Stainless Steel Condition: New
High Light:

smt production line equipment

,

smt assembly equipment

Large Capacity Vacuum PCB Handling Machine , Light Display One Year Warranty



Application



This equipment use the Vacuum suctioin function to loading the PCBs to the SMT production line.



Features



1, Special designed structure, bare board transport to the PCB and SMT production line accroding to the downstream machine signal,

     to achieve the PCB loading.

2, Stable PLC and touch screen control, with pass through function.

3, Flexible suction plate design, high pressure nozzles, nozzles position can be adjustable.

4, Independent vacuum generator, high board loading and reliable.

5, High accuracy sliding linear module, long lifespan.

6, Light and sound alarm system.

7, SMEMA interface.

8, Tower light display.



Specification



Model HS-330VL
PCB dimension (50*50)-(450*330)mm or bigger size
Loading time 6 seconds
Voltage AC220V, 200W max
Transport belt ESD 7mm belt
Air supply 4-6 bar,max 10L/min
Transport Direction L-R or R-L (optional)
PCB thickness min 0.4mm
Up/down pitches 1-4(10mm step)
PCB store capacity max 100pcs
Machine height Standard(900±20mm)
Machien dimension 600*950*1200mm
Weight 150KG
