Product Name: | Automatic Soldering Robot | Axis: | 5 Axis |
---|---|---|---|
Platform: | Double | If Rotation: | Yes |
Soldering Head: | Single Head | After-sales Service Provided: | Video Technical Support |
Usage: | Pcb Soldeing,Welding,Circuit Board Soldering | Solder Wire Diameter: | 0.8,1.0,0.5,0.6,1.2 (mm) |
High Light: | automated soldering equipment,robotic soldering machine |
5 Axis Including 360 Rotation Storage Extension Automated Soldering Equipment
Introduction

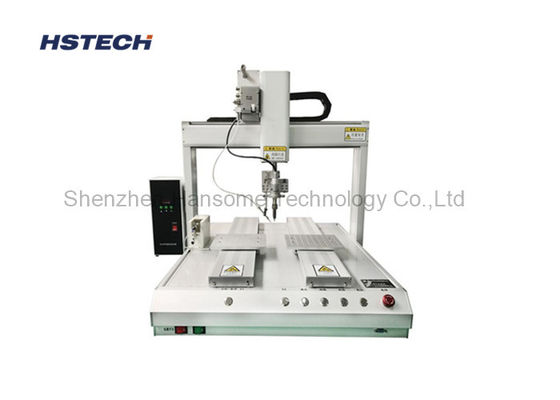

This equipment is a 5 axis single head automatic soldering machine, X axis, double Y platform,Z axis and 360 degree rotation R axis.
Features
1, The moving guide is the high precision and high quality Taiwan HIWIN brand linear guide.
2, Multi-axis robot with high precision stepper motor drive and the advanced motion control algorithm, it effectively improve the positioning accuracy and repeat precision.
3, Flexible soldering, available for spot soldering, drag soldering and other functions.
4, The machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
5, Soldering program can be copied, save the programing time.
6, The machine can store 99 sets operation program, can solder 99 different products with the same machine.
7, This equipment has the function for automatic cleaning, extend the lifespan of the solder iron, improve the soldering quality.
8, Through an external I / O interface, to achieve real-time control of the soldering robot, intelligent control system, execute the error alam & high-speed motion shockproof functions. Intelligent master program, achieve automation and intelligent soldering process.
Specification
Model | HS-S5331R |
Power supply | Meanwell driver AC110V/220V |
Air pressure | 0.45-0.5Mpa |
Axis | 5 |
Moving range |
X 500mm |
Y1 300mm | |
Y2 300mm | |
Z 100mm | |
R 360degree | |
Moving speed |
X/Y1/Y2 1-600mm/s |
Z 1-300mm/s | |
R 1-100mm/s | |
Transport method | Linear guide |
Repeat accuracy | ±0.05mm |
Platform load capacity | 10kg |
Z Axis load capacity | 5kg |
Y platform size | 190*150mm |
Heater power | 150W |
Edit mode | Handle panel |
Program capacity | 99 |
Communication port | RS232 |
Feeding | Single tin feeding system |
Solder tin diameter | 0.3-1.5mm |
Machine dimension | 720*580*645mm |
Net Weight | 65kg |
