| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | HS-600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Name: | Pneumatic Stencil Cleaning Machine | Cleaning Liquid: | Alcohol |
|---|---|---|---|
| Liquid Filter: | 3 Level Filter System | Machine Type: | High Pressure Cleaner |
| Use: | Clean Solder Paste Stencil | Stencil Dimension: | 740*740*40mm(or Customized) |
| Dimension(l*w*h): | L980 X W700 X H1730(mm) | Weight: | 200kg |
| High Light: | pcb cleaning equipment,smt stencil cleaning machine |
||

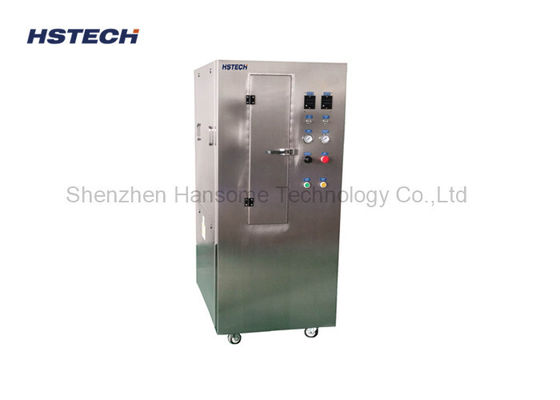

Alcohol Solvent High Pressure SMT Stencil Cleaning Machine with Drying Function
Introduction
This machine used to clean solder paste, gule on the surface of stencils.
Features
1, Completely pneumatic power, operating without fire risk.
2, Used to remove solder paste, gule and dust on the stencils and steel mesh.
3, Full stainless steel structure, reliable quanlity and won't rust.
4, The machine also equipped with a counter, can counting the cleaning screen quantities.
5, Cleaning in closed-loop which can save the cleaning liquid consumption.
6, Easy operation, after setting the cleaning and drying, press the start to begin the process.
7, High precision 3 level filtering system, use best quality filters.
8, Machine is wheel movment, with wheel fixed divice.
Specification
| Model | HS-600 |
| Product name | Pneumatic stencil cleaning machine |
| Application stencil size | Standard 29inch and below |
| Cleaning method | Rotary double side pressure injection and high pressure air praying ( cleaning and drying ) |
| Machine metarial | Stainless steel, anti-fire, explosion-proof |
| Power | Pneumatic |
| Application | Stencil,cooper screen,gule screen |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method |
Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 200kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
