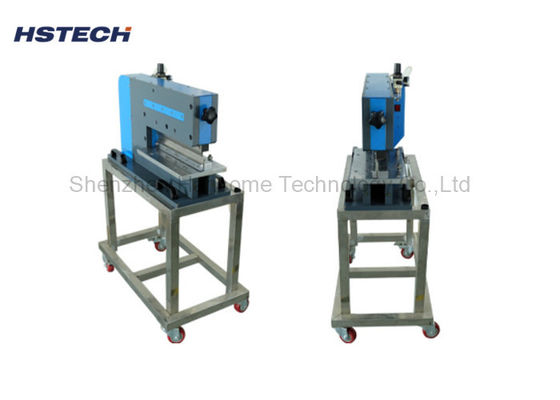

Electrical PCB Depaneling Equipment V Cut PCB Separator 0.5-0.8 Mpa Air Pressure

Electrical PCB Depaneling Equipment V Cut PCB Separator 0.5-0.8 Mpa Air Pressure

  • Electrical PCB Depaneling Equipment V Cut PCB Separator 0.5-0.8 Mpa Air Pressure
Electrical PCB Depaneling Equipment V Cut PCB Separator 0.5-0.8 Mpa Air Pressure
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden pacakge
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200sets per month
Contact Now
Detailed Product Description
Product Name: PCB Depaneling Machine Other Name: Pneumatic Pcb Separator
Air Pressure: 0.5-0.8Mpa Power Supply: AC220V/110V
Pcb Thickness: 0.3 To 3.5mm Warranty: 1 Year
High Light:

v cut pcb depanelizer

,

pcb board cutting machine

Ultra Low Stress Guillotine PCB Separation Depaneling Machine for Quality Board





Introduction



This machine powered by air pressure and electricity combined, using double linear blade cutting, suitable for high requirement PCB depaneling,

it has ultra low cutting force stress, well protected boards without bent, also the cutting surface is smooth and flat, without glitch. At the same, the

machine equipped with a counter which can counting the separating times.



Features



1. Linear blade depaneling, feet switch to driven the blade.

2. Shears boards safely with parts as close as 0.5mm to the score line.

3. Boards insert into the blade through the v-slot.

4. Need air pressure supplying, pneumtic power, also electricity needed as well.

5. The distance between these two blades can be adjusted.

6. Standard height stainless steel structure to hold the depanelizer.

7. Wheel moving.





Specification



Model HS-310
Power Penaumatic and electricity
Air supply 0.5~0.8Mpa
Efficient cutting length 1-360mm
Linear blade size 360*43.5*6mm
Blade material Import high quality high speed steel tool
Separating speed 1-300mm/s
V-cut thickness 0.3-3.5mm
Air consumption 200-400(L/min)
Machine size 700*325*400mm
Weight 130kg
Suitable board All V-cut board
