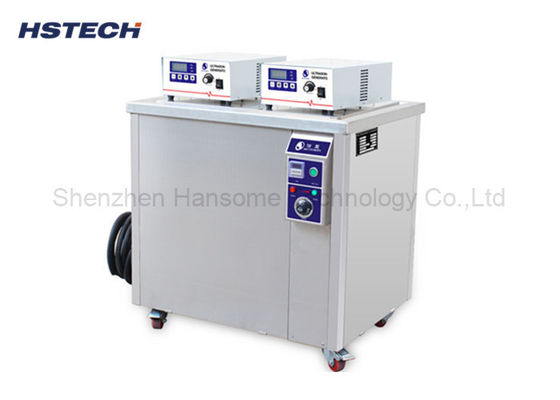

Single Tank SMT Cleaning Equipment 96 Liters Capacity Stencil Cleaning Machine

Single Tank Ultrasonic Generator Cleaning Equipment for SMT Stencils / PCBA

Introduction

This ultrasonic used for cleaning PCBA, stencils, stell mesh, etc SMT parts, it also widely used to cleaning hardware, watch, glasses, and many other products with Oil and dirt.

Features

Cleaning tank

1, Inner tank size: L600×W400×H400(mm); capacity 96 liters

2, Material: Made of imported SUS304L board (thickness 2mm)

3, The surface of the bottom-mounted ultrasonic vibration working board is hardened to effectively extend the service life of the vibration board;

4, Stainless steel square bracket, the bottom of the tank is provided with a drain;

5, The cleaning bracket is arranged at the bottom of the tank body to isolate the cleaning hanger from the bottom of the tank;

6, The heating tube is installed and heated, and the temperature is adjustable.

Ultrasonic device

1, Ultrasonic installation method: bottom-mounted shock plate;

2, 72 vibrators are installed at the bottom of the tank; Ultrasonic power: 0-3600W can be adjusted

3, ultrasonic power: 0 ~ 1800W * 2 sets (continuously adjustable), ultrasonic frequency 28 / 40KHz

4, The ultrasonic transducer adopts the pure industrial shock head imported from South Korea, which has large cleaning power and long service life;

5, Adopting the latest bonding technology of Korea and imported special adhesive to ensure better bonding performance between the transducer and the vibrating surface. No degumming considerations, stable performance. The transducers are all reinforced and equipped with high frequency wires.

Ultrasonic conductor

1. Single-chip control, the ultrasonic output power is increased by more than 15% compared with the old circuit, and the continuous stepless adjustable, liquid crystal display.

2. The working voltage of the ultrasonic generator device is 220VAC +/- 10%. The ultrasonic generator has protection measures such as overvoltage, overcurrent and output short circuit.

3. The ultrasonic generator has the function of stepless adjustment of power, and the output power can be continuously adjusted from 0 to 100% to meet the requirements of various cleaning objects.

4, The ultrasonic generator is equipped with a digital ultrasonic working time of 0~99 hours, which can be clearly confirmed to achieve unattended automatic duty.

4, Electrical system

1, Structure Control box generator and washing machine body are made into a body

2, Components: The relay is "Schneider" brand, and the rest parts

are imported high quality parts.

5, Heating function: Electrothermal system: SUS304 stainless steel heating tube. Long life and easy maintenance, power 18KW*1PCS. Controlled by a temperature controller, the temperature is adjustable from RT to 100 °C.

6, The machine chassis and the surrounding brackets are made of stainless steel profiles. The machines are all made of stainless steel, which is beautiful and durable.

7, Accessories: bracket in the slot, SUS304L steel welding.
