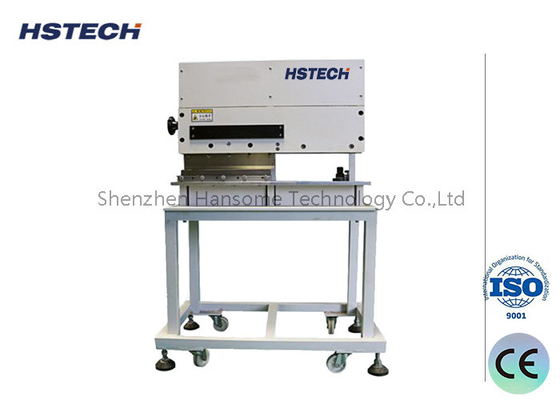

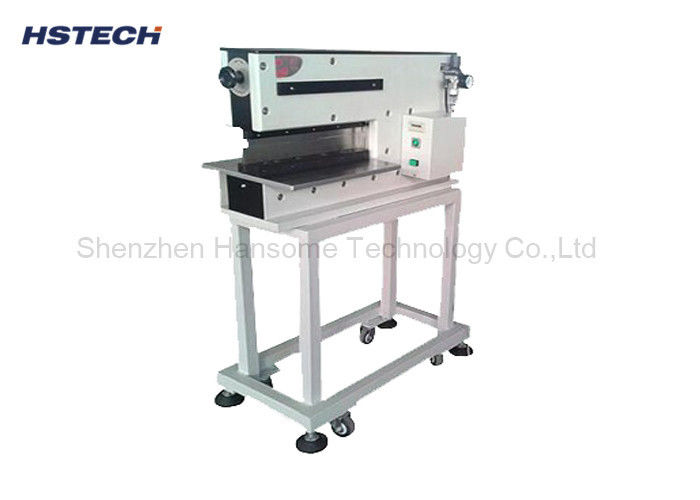

CE Air Pressure PCB Board Cutting Machine Max Cutting Length 360mm

CE Air Pressure PCB Board Cutting Machine Max Cutting Length 360mm
CE Air Pressure PCB Board Cutting Machine Max Cutting Length 360mm

Large Image :  CE Air Pressure PCB Board Cutting Machine Max Cutting Length 360mm

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-310
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden pacakge
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200sets per month
Detailed Product Description
Product Name: Guillotine Type PCB Separator Other Name: Pneumatic Power PCB Separator
Suitable Board: FR4,Aluminum,LED Panel,Fiberboard,copper Board Air Pressure: 0.5-0.8Mpa
Voltage: AC110V/220V Warranty: 1 Year
High Light:

pcb depaneling machine

,

pcb board cutting machine

Air Pressure Supply Max Cutting Length 360mm PCB Depaneling Machine with CE



Introduction



This machine is pneumatic powered, work with 2 linear guillotine type blade, ultra low force stress, smooth and flat cutting, without glitch.

The linear knife type depaneling machines were designed to depanel prescored panelboards carefully, without bending or tension stress.
Even sensitive SMD-components like ceramic capacitors will not be damaged by the depaneling process.

It suitable for all kinds of pcb board,LED aluminum board,COB board, cooper board,etc



Features



1, Guillotine type separating,low force stress500-600uE,high quality cutting.
2, Suitable for all kinds of material board,also can cutting high hardness,aluminum,and cooper board.
3, Security: small guillotine only available for board feeding,ensure the safety of the operator.
4, Very easy to learn and operating.
5, Durable, using import high quality steel made cutting tool.



Specification



Model HS-310
Power 10W
Air supply 0.5~0.8Mpa
Efficient cutting length 1-360mm
Linear blade size 360*43.5*6mm
Blade material Import high quality high speed steel tool
Separating speed 1-300mm/s
V-cut thickness 0.3-3.5mm
Air consumption 200-400(L/min)
Machine size 700*325*400mm
Weight 130kg
Suitable board All V-cut board
