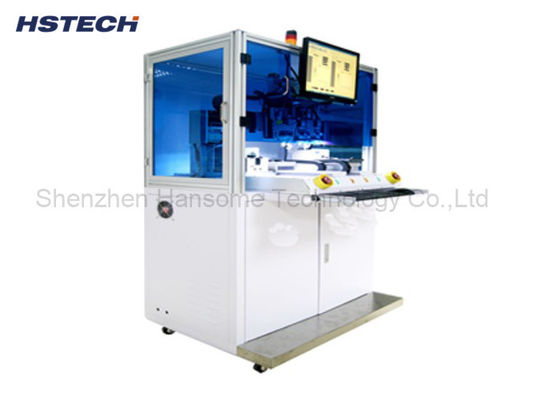

6 Axis Screw Locking Tightening Machine PC Display Desktop Screw Machine

6 Axis Screw Locking Tightening Machine PC Display Desktop Screw Machine
6 Axis Screw Locking Tightening Machine PC Display Desktop Screw Machine

Large Image :  6 Axis Screw Locking Tightening Machine PC Display Desktop Screw Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-VS800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50pcs per month
Detailed Product Description
Product Name: CDD Automatic Screw Fastening Machine Other Name: Visual Screw Locking Machine
Axis: 6 Axis Servo Motor: Panasonic
Feeder: NSRI(from Japan) Material: Sheet Metal
High Light:

desktop screw machine

,

screw tightening robot

CCD Vision 6 Axis Screw Locking / Fastening Machine with PC Display



Introduction



This machine is a high presicion screw locking machine, with CCD positioning, work with the Windows system, which can see all the operation

steps of screws fastening, this machine using HIWIN P-Class KK slide module and Panasonic servo motor, custom type nail feeder, never stuck nail, also use the laser positioning sensor to detect the height of locking. High precision screwing with servo intelligent electric screw driver

All the actions of the fastening equipment are completed by high-performance motion control card



Application



This CCD auto screw locking machine is widely used for locking the casing of smart phone, power adapter, PCB electronic products, batteries, small household applicance, wifi routers, power supply, toy wheels, and other automotive parts and small electronic products.



Specfication



Model HS-VS800
Product name Auto CCD screw fastening machine
Power supply AC380V
Working axis 6 axis
Screw diameter range 0.8-2.0mm
Repeat accuracy ±0.02mm
Motor Panasonic servo motor
Linear guide/screw HIWIN brand KK module
Control card LEADSHINE brand high performance control card
Screw driver Vauguard
Camera Germany brand BASLER industrial camera
Lens High resolution high performance lens
Light source Industrial LED source
Vacuum generator AIRTEC
Feeder NSRI from Japan
Optoelectronic parts Schneider / Omron
Machine size 930*780*1700mm
Gross weight 350kg
