Auto Screw Fastening Machine Double Screw Feeder 6 Axis Suction Type 0.02mm Accuracy

Auto Screw Fastening Machine Double Screw Feeder 6 Axis Suction Type 0.02mm Accuracy
Auto Screw Fastening Machine Double Screw Feeder 6 Axis Suction Type 0.02mm Accuracy Auto Screw Fastening Machine Double Screw Feeder 6 Axis Suction Type 0.02mm Accuracy

Large Image :  Auto Screw Fastening Machine Double Screw Feeder 6 Axis Suction Type 0.02mm Accuracy

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SL7331S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: 6 Axis Screw Locking Machine Feeding: Suction Feeding
Axis: 6 Axis Screw Feeder: Double
Screw Driver: Double Moving Range: 300*300*100mm/300*300*100mm
Port: Shenzhen Oem: Yes
High Light:

desktop screw machine

,

screw locking tightening machine

Double Screw Feeder 6 Axis Suction Type Auto Screw Fastening / Locking Machine

Introduction

The screw machine is a 6 axis screw lock machine, it just like two 3axis screw lock machine made in one machine, so this unit machine has  double working station, double screw driver and double screw feeder, it's a most efficiency machine which can locking two pcs of products at the same time.

Specification



Model HS-SL7331S
Production name 6Axis Automatic Screw Locking Machine
Moving range(X1/Y1/Z1) 300*300*100mm
Moving range(X2/Y2/Z2) 300*300*100mm
X/Y axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension 1092*585*800mm
Machine weight 85kg



Features


1, Suction type feeding, double screw driver, double screw feeder.
2, 6 Axis operation, moving range 300*300*100mm, same as 2 units 3 axis machine assembly in one machine.
3, Can connect the automatic production line, achieve automatation production.
4, Support PC diagram image import, can import PLT and G code files.
5, Rich motion instructions and auxiliary instructions.
6, Friendly teaching pandent and programing system, also support high level image copy, batch revise, etc editing function.
7, Dynamic display of machining tracks in real time.
8, Friendly and quick help system, Press shift+F1 on any interface to call the help interface.
9, Processing methods support cycle machining, single machining, automatic machining, single-step machining, etc.



Main parts brand



1, Motor: Shinano      2, Guide: Hiwin      3, Photoelectric switch: Omron      4, Power supply: Meanwell

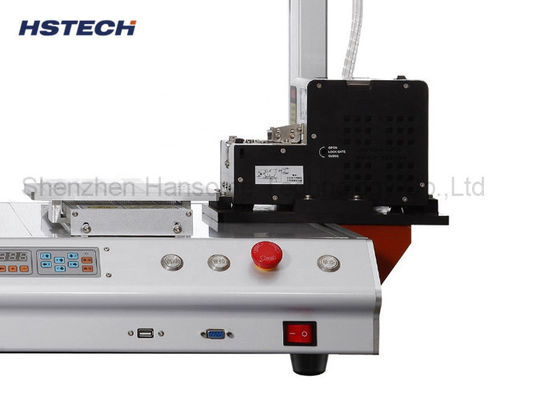

Auto Screw Fastening Machine Double Screw Feeder 6 Axis Suction Type 0.02mm Accuracy 0

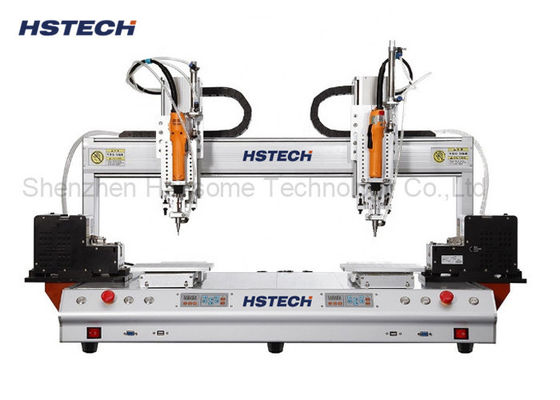

Auto Screw Fastening Machine Double Screw Feeder 6 Axis Suction Type 0.02mm Accuracy 1
