| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | EIA |
| Model Number: | CT-02 |
| Minimum Order Quantity: | 200 meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton package |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |
| Product Name: | Carrier Tape | Material: | PC/PS/ABS |
|---|---|---|---|
| Width: | 8mm/12mm/16mm | Thickness: | 0.14`2mm |
| Color: | Black Mostly | If ESD: | Yes |
| Cover Tape: | Included If Customer Request | Supply Ability: | 5000000 Meters Per Week |
| High Light: | smd chip counter,electronic component reel counter |
||

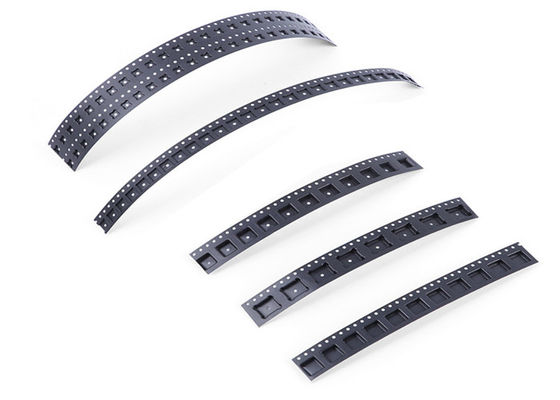

Semiconductor IC LED Chip Diodes SMD Components Carrier Tape Packing
Introduction

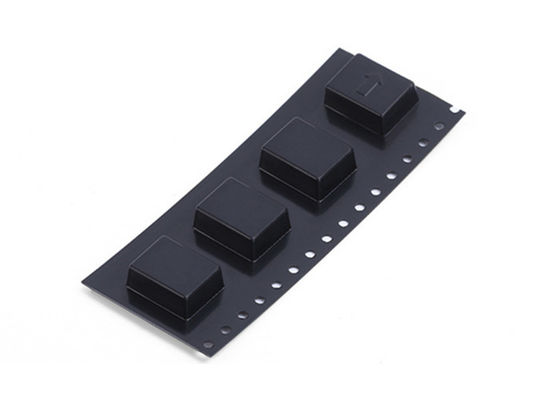

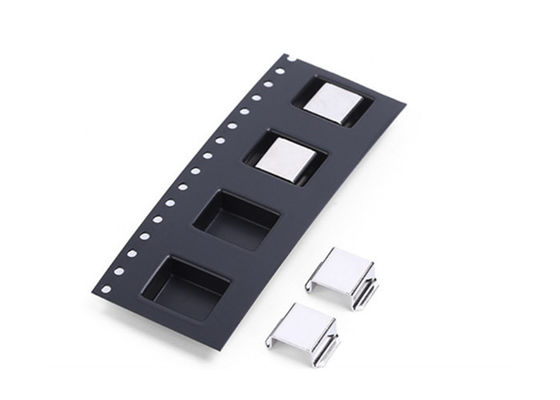

The carrier tape are made of polystyrene, polycarbonate and PET. Carrier tapes with varying conductive and anti-static qualities to suit different components applications.The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm, we also can custom for customers based on their demand. In the carrier tape, there are sprocket holes down both sides of the tape, round with a radius of approximately 1.5 mm on one side and oval with a "radius" of 0.75 mm on the other. These holes enable precision presentation of the pocket to the pick and place unit.
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Reels
We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements
Application
The embossed carrier tapes are widely used in the surface packaging, carrying and transmission of the surface mounting equipments,for example, the mini PCB , IC ,LED chip, connectors, diodes, dynatrons, resistors, conductors, capacitors, fuses, switches, relays, resonators, radome, socket component,etc.
We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.
