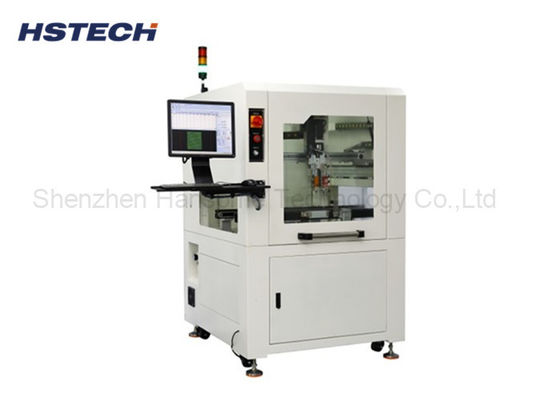

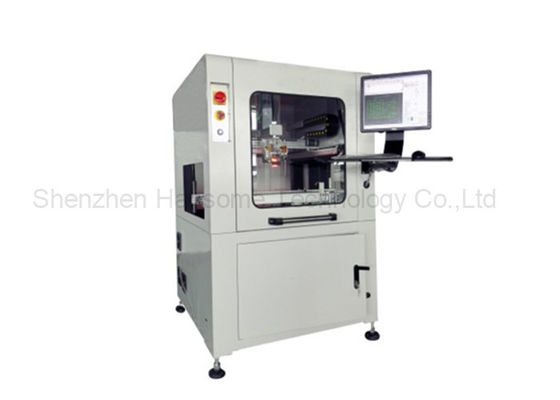

Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control

Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control
Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control

Large Image :  Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,TUV
Model Number: HS-CC300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, with foam protective
Delivery Time: 3 weeks
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: Selective Coating Machine Other Name: PCBA Conformal Coating Machine
Power Supply: AC220V/110V,50/60Hz Transport Height: 920±20mm
Transport Direction: Left, Or Right Components Height: Max 100mm
Communication Singal: SMEMA Machine Weight: 600KG
High Light:

industrial vacuum sealer machine

,

automatic glue dispenser

HS-CC300 Auto Coating Machine.pdf



Windows PC Control Multipls Axis SMT PCBA Selective Conformal Coating Machine



Product introduction



This automatic conformal coating machine is used after the wave soldering for the PCBA, it has the single coating machine option and the whole coating line, the line which including the UV curing oven and linking conveyors. The machine adopts multiple axis moving system, driven by air pressure and servo motor, with doulbe spraying valves, one for spraying coating, and ther other glue dispensing valve for filling the edge places.



Features



1. 3 axis driven platform adopts precision ball screw with Fuji servo motor.

2. Achieve selective coating for various kinds of PCBA.

3. Straight line, circle, arc coating and dispensing.

4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.

5. Repeat ccuracy: ±0.02mm.

6. With high-speed, high reliability, high stability of the transmission and control system.

7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.

8. With smart automatic width adjustment function (automatically adjust after inputting the board width).



Machine Specification



Product name Automatic selective conformal coating machine
Model HS-CC300
Transmission height 920±20mm
Conveyor width 50-450mm/or customized
Transmission  L to R, or R to L
Component height up and down max 100mm
Size of PCB board edge ≥5mm
Transport speed 0-12000mm/min
3 Axis drive speed 800mm/s
Repeat accuracy ±0.02mm
Storage programs up to 1000
Power supply AC220/110V
Air pressure 4-kgf/cm2
Glue tank 10L,manual stirring
Control mode Industrial PC+Motion control card
Linear guide adjustment Intelligent adjust
Programming mode Manual teaching
Communication port SMEMA
Lighting source Self-equipped lighting source
Detection lighting source Self-equipped
Software Windows+coating software
Driving Motor Stepper motor(2pcs)
3 axis driving mode Servo motor+screw driver module+Electric Cylinder
Number of rubber valves 1 spray valve+ 1 dispensing valve
Spray width 3-20mm
Spraying method Automatic
Total power 2.6kW
Machine body Stainless steel
Machine weight 600kg
Machine dimension 1060x1200x1700mm



Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control 0

Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control 1



Multipls Axis SMT PCBA Selective Conformal Coating Machine Windows PC Control 2
