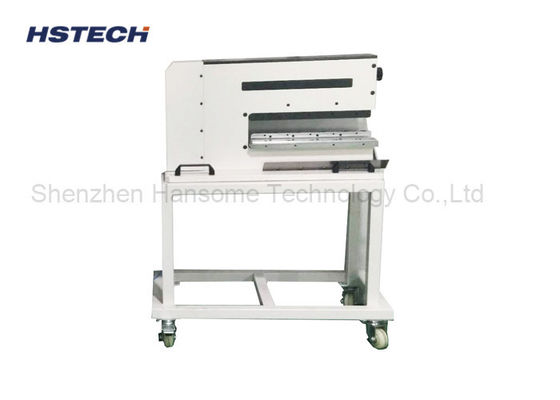

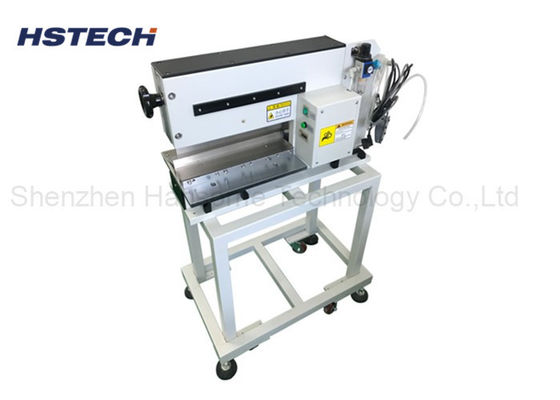

Large Image :  FR4 Aluminum Board PCB Depaneling Equipment Pneumatic Driven Linear Blade Separator

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-310L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden pacakge
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200sets per month
Detailed Product Description
Product Name: Pneumatic PCB Depanelizer Other Name: V-CUT PCB Separator
Voltage: AC220V/110V Pcb Length: 0~ 360mm
Depaneling Balde: High Quality Guillotine Blade Warranty: 1 Year
High Light:

v cut pcb depanelizer

,

pcb board cutting machine

PCB Depanelizer Pneumatic Driven Linear Blade Separator for FR4 Aluminum Board



Introduction



This machine is used for cutting FR4, Aluminum board, Cooper board, fiber -glass board, adopts high quality and durable linear guillotine blade, driven by the pneumatic,feet step the feet switch to finish the depaneling operation.

The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process,improve products quality

This machine is a powerful machine for separating the V-cut line connectted PCB panels, ultra low cutting force stress, and no glitch.



Features



1, Used for separating the V-cut line connect PCB boards.

2, Power cutting, no glitch and ultra low force stress.
3, Pneumatic driver ,solenoid vale controlled, high speed.

4, The up and lower blade height are adjustable , Gap for insertion of the PCB board can easily be adjusted by adjusting knob in the top side
     of  the machine.
5, Lower blade height adjust front and real portion can be adjusted separately, don't need shim , which make change and adjust blade more easy .     The blade can sharpening many times, lower cost .
6, The PCB or thin plate without v-grooved can customized tray and prevent stay positioning device.
7, Operation and maintenance can be done also by unskilled personnel .



Specification



Product name PCB depanelizer
Model HS-310L
Part-up height Max 39mm
Part-down height Max 19mm
Air supply 5Kgf/cm
Output 12.5tons(gross)
Efficient cutting length 1-360mm
Linear blade size 360*43.5*6mm
PCB thickness 0.1mm~2.0mm(With v grove)
0.1mm ~1.0mm(Without V grove )
Blade material Import high quality high speed steel tool
Separating speed 1-300mm/s
V-cut thickness 0.3-3.5mm
Air consumption 200-400(L/min)
Machine size 700*325*400mm
Weight 130kg
Suitable board All V-cut boards



Application boards
