| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-CVN4600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 12~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Reject Conveyor | Suitable PCB Dimension: | 50*50~550*460mm |
|---|---|---|---|
| Power Supply: | AC100-230V | PLC: | MITSUBISHI |
| Sensor: | Sick | Contol: | Touch Screen |
| PCB Stock Capacity: | 5pcs Or 10pcs | Signal: | SMEMA |
| High Light: | Aluminum PCB Reject Conveyor,Mitsubishi PLC PCB Reject Conveyor |
||

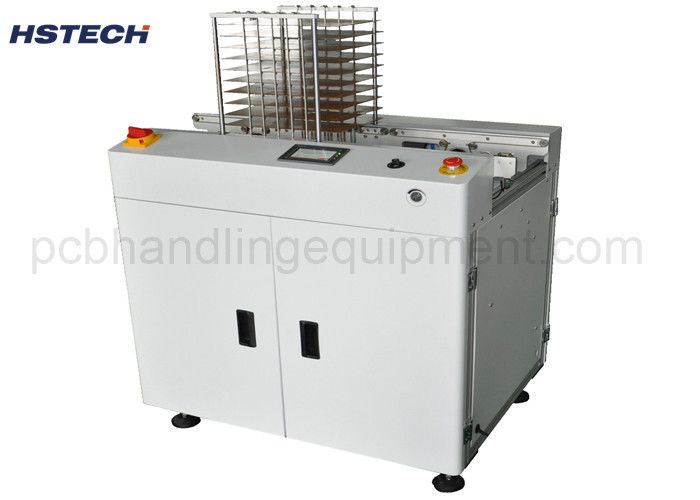

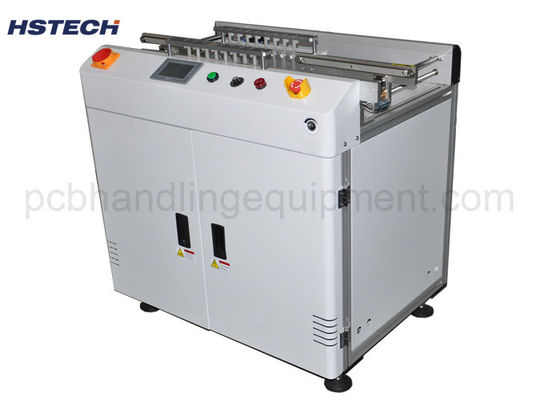

Mitsubishi PLC Aluminum Track Stock 10pcs NG PCB Reject Conveyor
Features
1, Reject, inspect and by-pass modes all available.
2, Modular design.
3, Stability enhanced by robust design.
4, Laser carved stainless steel side guide for superior quality and durability.
5, Ergonomic design arm rest.
6, Smooth and parallel width adjustment(lead screw).
7, Different lengths available upon request.
8, Variable speed control.
9,SMEMA compatible.
Specification
| Function | This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow. |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L(optional) |
| Transporting speed | 0.5~20 m/min or specify |
| Power supply | AC100-230V,50/60Hz,single phase |
| PLC brand | Mitsubishi |
| Sensor brand | Sick |
| Driver brand | Meanwell |
| Power consumption | 100VA max |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| Communication | SMEMA |
| Model | HS-CVN350 | HS-CVN460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 1000*690*930mm | 1000*800*930mm |
| Weight | 70kg |
90kg |
Transporting rail
Lifting Sturcture
Electric control
