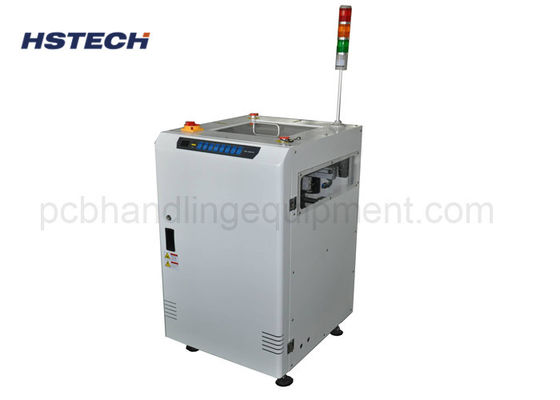

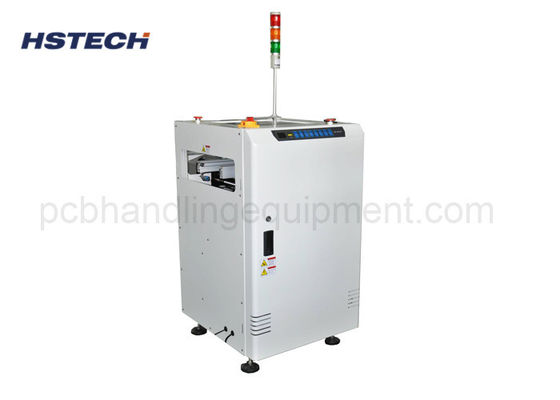

SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor

SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor
SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor

Large Image :  SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SZ350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Turn Conveyor Suitable PCB Dimension: 50*50~450*350mm
Power Supply: AC100-230V PLC: MITSUBISHI
Sensor: Sick Contol: Touch Screen
Turn Degree: 90 Degree, 180degree, 270degree Signal: SMEMA
High Light:

180 Degree PCB Turn Conveyor

,

90 Degree PCB Turn Conveyor

SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor



Features



1, Enclosed design with built-in torque limiter ensure high level

of safety.

2, Top safe cover can be opened for each access to hardware during

Maintenance.

3, Use friendly control button.

4, Smooth and precise rotation.

5, Minimize the transfer gap between conveyors.

6, PCB traffic flows can be customized.

7, Smooth and parallel width adjustment(lead screw).

8,SMEMA compatible.



Specification



Function This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree)
Transport height 910±20mm
Transportation direction L~R, or R~L
Cycle time Approx 5 seconds
Track fixed side Front side
Power supply AC100-230V,50/60Hz,single phase
Air pressure 4-6bar
Air consumption Max 10L/min
PCB thickness Min 0.4mm
Signal SMEMA



Model HS-SZ350 HS-SZ460
Efficient PCB length 50*50~450*350mm 50*50~550*460mm
Machine dimension 700*750*1200mm 840*890*1200mm
Weight 150kg 180kg



SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor 0

SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor 1



SMT Flow Direction Change 3 Color Tower Light 90 180 Degree PCB Turn Conveyor 2
