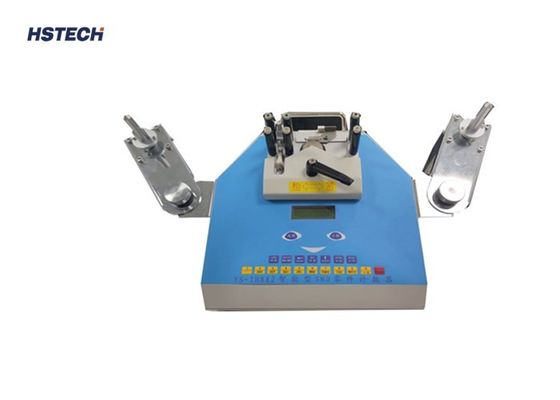

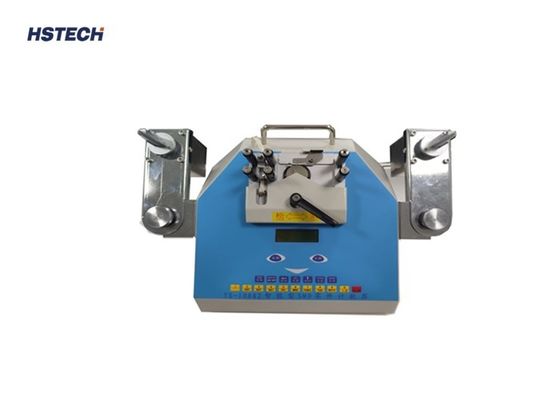

32mm Pitch 80W 19s SMD Components Counting Machine

32mm Pitch 80W 19s SMD Components Counting Machine
32mm Pitch 80W 19s SMD Components Counting Machine 32mm Pitch 80W 19s SMD Components Counting Machine

Large Image :  32mm Pitch 80W 19s SMD Components Counting Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-882
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: SMD Counter Power Supply: AC110V,AC220V, 50/60Hz
Wattage: 80W Weight: 11kg
Driving Motor: 2 Pcs Available Tape: 7~13inch
Display: LCD Warranty: 1 Year
High Light:

80W SMD Components Counting Machine

,

19s SMD Components Counting Machine

,

32mm Pitch SMD Parts Counter

High Precision Panasonic Motor Missing Track SMD Components Counting Machine



Specification



Model HS-882
Power supply AC110V,AC220V, 50/60Hz
Wattage 80W
Counting time 19s to 2 min
Counting range -16777216~16777216 pcs
Pitch size 2,4,8,9,10,12,16,24,32mm
Tape width 8,12,16,24,32,44,56,72,88 m
Plastic reel size 7-13 inch
Application Suitable for all components
Product size 730*230*270mm
Gross weight 11kg



Features



1. Intellegent counting, with pocket check function.
2. Eight grade speed adjustment, improve the efficiency,meet the different size tape.
3. Optional label printer and barcode scanner.
4. With voice prompt function.

5, With the end comopnents automatic stop counting function.
6. 57 stepper motor.

7, The wohle machine body stainless steel, durable design.

8, High resolution LED display, better to observe the counting process.
9, Fully control the components in the factory, avoid mistakes.



Comparison with traditional counter



Comparison point Traditional counter Intelligent counter-HS-881
Automatic stop after work No, need to push stop manually yes
Buffer stop No Yes,would slow down when is finishing
Voice instruction and number off No Yes, finish alert
Error No. No.
Power 30W 80W
Speed

For 5000pcs small elements

30 seconds per plate

For 5000pcs small elements

15 seconds per plate

Speed Adjustment 3 levels 8 levels
Noise Low low
Counting scope -99999 to 99999 -16 777 216 to 16 777 216
Printer port yes yes
Scanner port yes yes
Omission detection, optional yes yes
Clock, optional yes yes



32mm Pitch 80W 19s SMD Components Counting Machine 0

32mm Pitch 80W 19s SMD Components Counting Machine 1

32mm Pitch 80W 19s SMD Components Counting Machine 2
