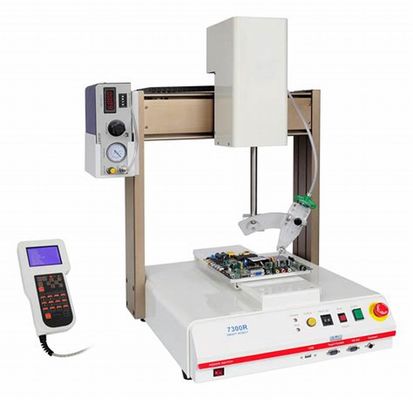

3 Aixs Automatic Selective Conformal Coating Machine Fuji Motor

3 Aixs Automatic Selective Conformal Coating Machine Fuji Motor
3 Aixs Automatic Selective Conformal Coating Machine Fuji Motor

Large Image :  3 Aixs Automatic Selective Conformal Coating Machine Fuji Motor

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,TUV
Model Number: HS-CC300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, with foam inside
Delivery Time: 10-20 days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: 3Axis Selective Coating Machine Axis: 3 Aixs Or 5Axis
Power Supply: AC220V/110V Transport Height: 920±20mm
Machine Weight: 600kg Machine Dimension: 1060x1200x1700mm
High Light:

3 Aixs Conformal Coating Machine

,

Automatic Selective Conformal Coating Machine

,

Fuji Motor Selective Coating Machine

Automatic Selective Conformal Coating Machine for PCBA SMT Backstage Process



Product introduction



1. X, Y, Z axis drive platform adopts precision ball screw with Fuji servo motor.

2. Achieve selective coating for various kinds of PCB.

3. Straight line, circle, arc coating and dispensing.

4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.

5. Accuracy: ±0.02mm.

6. With high-speed, high reliability, high stability of the transmission and control system.

7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.

8. With smart automatic width adjustment function (automatically adjust after inputting the board width).



Machine Specification



Product name Selective conformal coating machine
Model HS-CC300
Transmission height 920±20mm
Conveyor width 50-450mm/or customized
Transmission  L to R, or R to L
Component height up and down max 100mm
Size of PCB board edge ≥5mm
Transport speed 0-12000mm/min
3 Axis drive speed 800mm/s
Repeat accuracy ±0.02mm
Storage programs up to 1000
Power supply AC220/110V
Air pressure 4-kgf/cm2
Glue tank 10L,manual stirring
Control mode Industrial PC+Motion control card
Linear guide adjustment Intelligent adjust
Programming mode Manual teaching
Communication port SMEMA
Lighting source Self-equipped lighting source
Detection lighting source Self-equipped
Software Windows+coating software
Driving Motor Stepper motor(2pcs)
3 axis driving mode Servo motor+screw driver module+Electric Cylinder
Number of rubber valves 1 spray valve+ 1 dispensing valve
Spray width 3-20mm
Spraying method Automatic
Total power 2.6kW
Machine body Stainless steel
Machine weight 600kg
Machine dimension 1060x1200x1700mm
