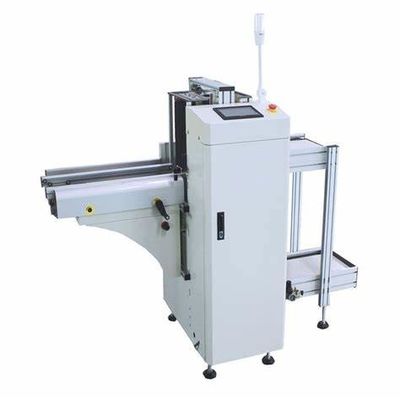

6 Seconds SMEMA Signal PCB Loader Handling Machine 0.4mm

6 Seconds SMEMA Signal PCB Loader Handling Machine 0.4mm
6 Seconds SMEMA Signal PCB Loader Handling Machine 0.4mm 6 Seconds SMEMA Signal PCB Loader Handling Machine 0.4mm

Large Image :  6 Seconds SMEMA Signal PCB Loader Handling Machine 0.4mm

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-LD330
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Multiple Magazine PCB Loader Other Name: SMT Board Loading Machine
Power Supply: AC110V/220V,50/60Hz Air Pressure: 4-6 Bar
PCB Thickness: Min 0.4mm Pitch Selection: 10-40mm
Conveyor Speed: 0.5-20M/min Or Customized Communication: SMEMA
High Light:

6 Seconds PCB Loader

,

SMEMA Signal PCB Loader

,

0.4mm PCB Handling Machine

Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine



Application



This unit is used for loading the PCBs,and transporting the PCB on the SMT production line.



Features



1, Module design.

2, Stability enhanced by robust design.

3, Economic design arm test.

4, Top and bottom pneumatic clamps to secure magazine rack.

5, No PCB breakage guaranty during loading &unloading.

6,SMEMA compatible.



Specification



Product name PCB Loader Machine
Transport height 910±30mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Pitch selection 1-4(10mm pitch)
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model selection



Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg





About Us:



Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.




HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.

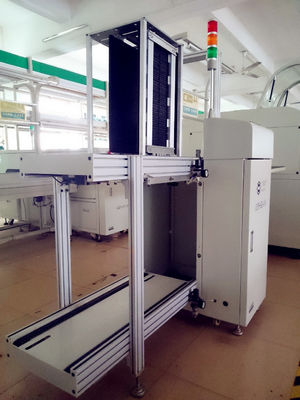

Control Bottun and electric box



6 Seconds SMEMA Signal PCB Loader Handling Machine 0.4mm 0
