| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | AR-7 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Small Size Offline PCB Router | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.3 - 5mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Total Power: | 2600W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Mounting Accuracy: | ±0.01mm |
| Type: | Automatic | Weight: | 30KG |

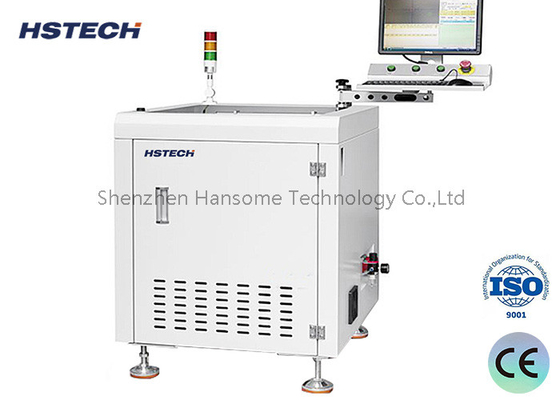

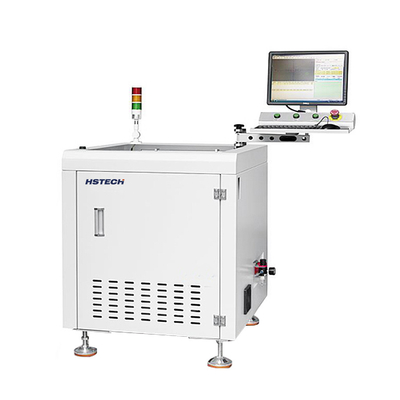

Offline Automatic Separating Customized Fixtures Mini PCBA Router Small Size Offline PCB Router
Specification
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW | |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual | |
| Cutting spindle/speed | 5000~60,000 rpm | |
| PCB thickness | 0.4-4mm | |
| Separating speed | 1-100mm/s | |
| Cutting accuracy | ±0.05mm | |
| Fixing type | Fixtures | |
| Programming | Vision teaching, inline programming | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel | |
| Dust collection method | Bottom dust collection | |
| Dust collector | 3 phase, 380V, 1.2KW | |
| Noise | <75dB | |
| Control system | Industrial PC | |
| Spindle brand | Germany brand, Sycotec 4025 | |
| Servo motor | A5 series | |
| Motion control | 4 axis motion control board | |
| Lead screw | C5 grinding screw lead | |
| Linear guide | P rank silence guide | |
| Camera | Germany brand Imaging 40W industrial camera | |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen | 17inch | |
Features
1, Offline automatic separating.
2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.
3, Customized fixtures.
4, PC and CCD visual system.
5, Programming with compensation and dust collection.
6, Available for max 410-510mm size PCBA.
7, Flexible for cutting two different type products.
8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).
Internal Structure
Application
This machine is a floor standing automatic PCBA routing machine, it’s single platform operation, using PC for programming, automatic bottom routing and bottom dust collecting.The machine using high speed routing spindle, fix the PCBA with jig, to separate the stamp hole, curve PCB, and other irregular connected PCBs.
