| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-LD330 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Multiple Magazine PCB Loader | Other Name: | SMT Board Loading Machine |
|---|---|---|---|
| Power Supply: | AC110V/220V,50/60Hz | Air Pressure: | 4-6 Bar |
| PCB Thickness: | Min 0.4mm | Pitch Selection: | 10-40mm |
| Conveyor Speed: | 0.5-20M/min Or Customized | Communication: | SMEMA |
Module Right Angle (90 Degree) Design Multiple Magazine PCB Loader 3 Magazines Available
Application
This unit is used in the beginning of SMT production line for tranporting PCBs from magazines to the line, it's a 90 degree type PCB loader, its special for saving the space of factory.
Features
1, Module right angle (90 degree) design.
2, Very short 1200mm length, optional shorter 900mm machine length.

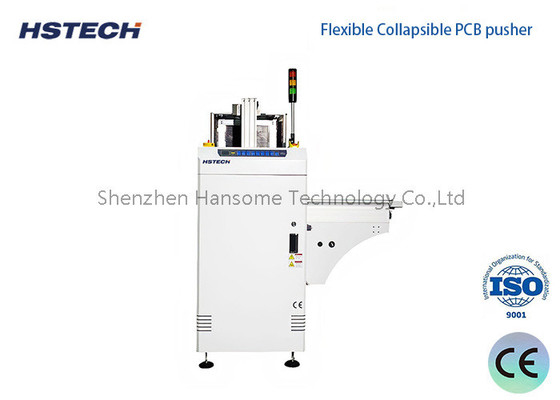

3, Flexible Collapsible PCB pusher.
4, 3 magazines available.
5, Smooth and parallel width adjustment.
6,SMEMA compatible.
Specification
| Product name | 90 degree PCB Loader Machine |
| Machine length | 1200mm or 900mm |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine replace time | Approx 30 seconds |
| Magazine qty | 3 pcs |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Pitch selection | 1-4(10mm pitch) |
| Conveyor speed | 0.5-20M/min or customized |
| Light status | 3 color display |
| Signal | SMEMA |
