| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-C600 |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | SMT Conveyor | Other Name: | Link Conveyor |
|---|---|---|---|
| Transporting Length: | 600 Mm | Transport Belt: | ESD Flat Belt |
| Belt Thickness: | 1.0 Mm | Voltage: | 1P AC 110V/220V 50/60HZ |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |

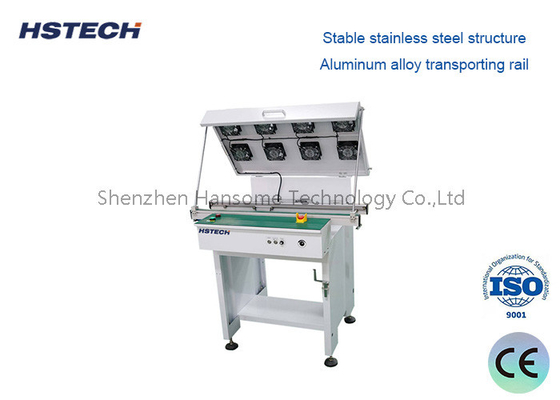

PCB Handling Equipment Stable Stainless Steel Manual Hand Crank Width Adjustable Conveyort
Features
1, Thickness stable stainless steel machine body.
2, Max 390mm PCB width, hand crand width adjustment.
3, Transporting speed adjustment by Knob.
4, ESD green color work table.
5, Aluminum alloy transporting rail.
6, LED button control, speed adjustment motor.

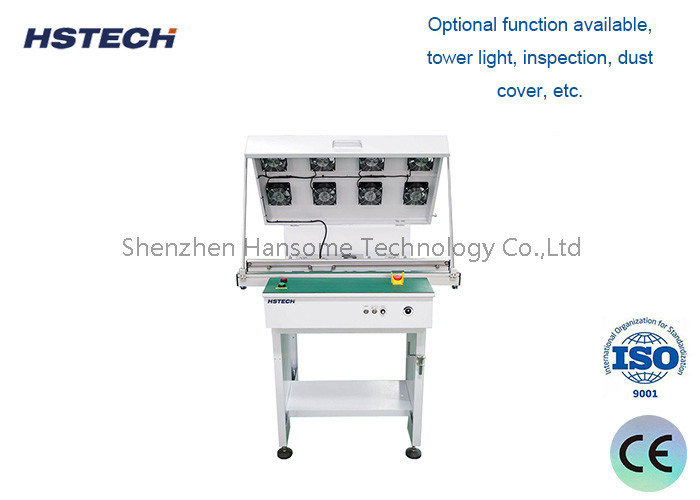

7, Optional function available, tower light, inspection, dust cover, etc.
8, Customized requirement available.
9, Length available, 600mm, 1000mm, 1500mm, or optional.
10, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C600S | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
| Communication signal | SMEMA | |||||
1.Mainly used in SMT production line equipment and equipment link between the transfer, stop board function.
2. According to the need to increase the detection, function switching, NG, data memory and other functions.
3. High-strength equipment body to ensure the stability of the equipment.
4. Smooth stainless steel screws can adjust the width of the rail.
5. Use special aluminium slots to make the transfer track to prevent pcb jamming.
6. The control system is PLC controlled with standard SMEMA signal interface.
8. Worktable plate, lighting, static dust cover, cooling fan can be added as required.
9. Various forms can be customised according to the customer's site size planning or product production requirements, so as to facilitate the customer to choose the most reasonable structure.
