| Model Number: | NS-600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |
| Product Name: | Automatic Solder Paste Mixer | Power Supply: | AC110V/220V, 50/60Hz |
|---|---|---|---|
| Speed: | Adjustment | Air Supply: | No |
| Size: | 410*410*490mm(W*D*H) | Weight: | 45kg |

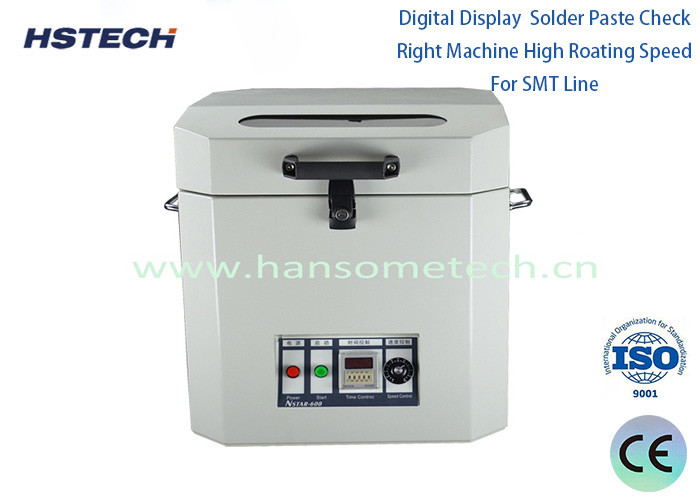

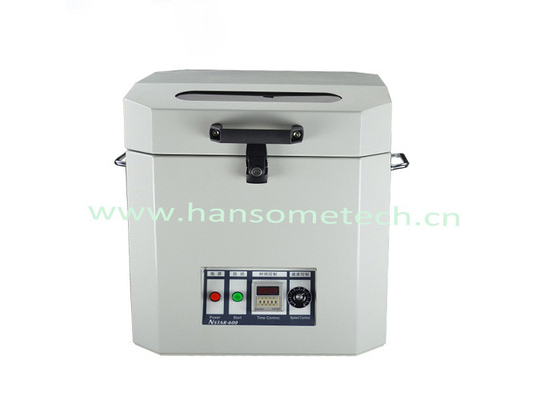

High-Speed Rotation Automatic Solder Paste Mixer With Light Blink And Buzzer Warning
Introduction
The revolution of the centrifugal force generated by automatic paste mixer,the force produced by the rotation of the rotating shaft and the angle of 45 degrees.The tank is located in the upper end of the paste continuous downward movement, at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste has good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of reflow soldering.
The fully automatic solder paste mixer uses the principle of lever balance and the two-way rotation of the object to be stirred on the fixed bracket, and uses the effects of object gravity and rotating centrifugal force to achieve the effect of evenly mixing the solder paste.
Features
1. This product has a high degree of automation, stable performance, simple and easy operation, high safety factor, and simple and quick maintenance;
2. Unique appearance design, beautiful, generous and practical, made with advanced baking paint technology;
3. The mixing principle is based on the revolution and rotation of the motor. There is no need to take out the refrigerated solder paste and de-ice it first;
4. The solder paste can be warmed up in a short time and stirred evenly before use;
5. Suitable for 500g solder paste of various brands, and can stir two cans at a time, saving mixing time and improving production efficiency;
6. During the mixing process, the solder paste box does not need to be opened, so that the solder paste will not oxidize or absorb moisture;
7. The enclosed mixing can fix the operating time, ensure the stability of the softness (Q-ness) of the solder paste, and mix the old and new solder pastes.
8. Place the solder paste at 45 degrees and rotate along the axis, so that the solder paste no longer adheres to the can lid;
9. Double safety device to ensure personal safety;
10. Stirring also has the effect of removing bubbles;
11. The dedicated control circuit fully considers the process control of solder paste stirring;
12. The rotation speed ratio has been proven in practice to avoid the impact of tin powder and excessive temperature rise on the quality of solder paste.
| Model: | NSTAR-600 | |||
| Wattage: | 60W | |||
| Power: | AC220V, 50Hz | |||
| Roating speed: | Primary rotating:1400RPM;Sencond rotating:400RPM | |||
| Working Capacity: | 500g*2jar; | |||
| Tin Pot's Size: | M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us) |
|||
| Time Setting: | 0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time |
|||
| Display & Caution: | LED digital display,light blink and buzzer warning | |||
| Machine Demension: | 410*410*490mm(W*D*H) | |||
| Packing Demension: | 420*420*500mm(W*D*H) | |||
| Net/Gross Weight: | 40KG/45KG | |||
