| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SL6331 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | 6 Axis Screw Locking Fastening Machine | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

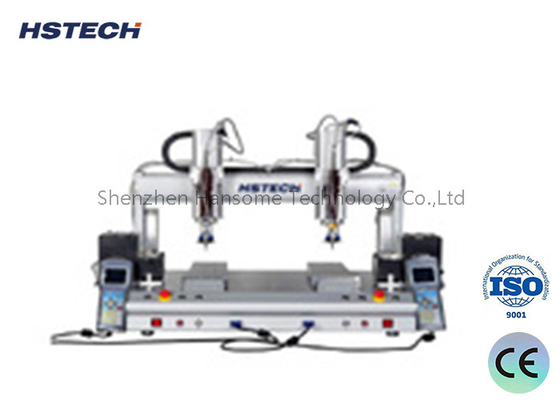

Real-Time Monitoring Screw Locking Machine With Adjustable Reference Point 6 Axis Screw Locking Fastening Machine
Machine Introduction
This automatic screw locking(fastening) machine we called a 6 axis automatic screw locking machine, it has dual screw head and dual platform, each platform with individual suction type screw feeder. Dual screw driver working at the same time, operator can load and unload the products for each working station and keep the machine working all the time.
Specification
| Model | HS-SL6331 |
| X1/Y1/Z1 Working Range | 300*300*100mm |
| X2/Y2/Z2 Working Range | 300*300*100mm |
| Screw feeder | Suction feeding,or blowing based on screws |
| X1/Y1,X2/Y2 axis moving speed | Closed loop motor :1-800mm/s |
| Z1 axis moving speed | Closed loop motor: 1-300mm/s |
| X1/Y1,X2/Y2 axis max load | Closed loop motor: 5KG |
| Z2 axis max load | Closed loop motor: 3KG |
| Repeat accuracy | ±0.02mm |
| Operation Method | Auto |
| Programming | Manual(Teach Pendant) |
| Control | Board card |
| Weight | 130kg |
| Dimension(L*W*H) | 1100*585*800mm |
| Power Supply | 220V 50-60Hz 500W |
Features
1. Support computer graphics import function, can import PLT file and G code file.
2. Rich motion instructions and auxiliary instruction sets.
3. Convenient and friendly document teaching and editing functions, and provide a variety of advanced editing functions such as batch modification, array copying, graphic shifting, graphic zooming, automatic rounding, etc., with a common graphics library for customer calls.
4. Graphic display function, which can display the shape of the graphic in the processing file very intuitively.
5. Real-time dynamic display of processing trajectories.
6. Convenient and quick help system, press Shift+F1 key to call the help file in any interface.
7. Processing methods support cyclic processing, single processing, automatic processing, single-step processing.
8. After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can be performed offline. Action parameters can also be saved In the hand-held box, easy to call.
9.can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.
Application
Suitable for mobile phones, hard drives, keyboards, electronic toys, computers, DVD, dots, plastics, electrical appliances, communication equipment, electrical appliances, toys, electronic processing, motors, motors, parts, tablets, notebook computers, digital cameras, remote controls, walkie-talkie, etc.
