| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-S5331R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | 5 Axis Automatic Soldering Robot | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

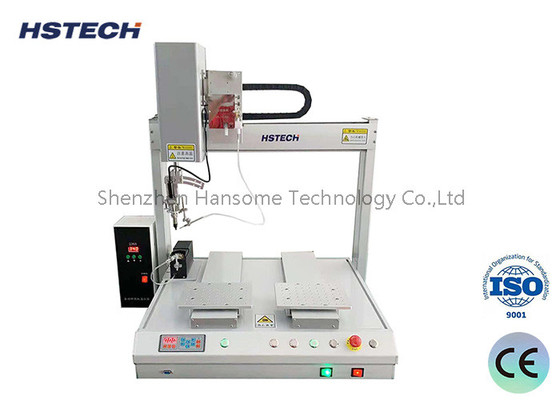

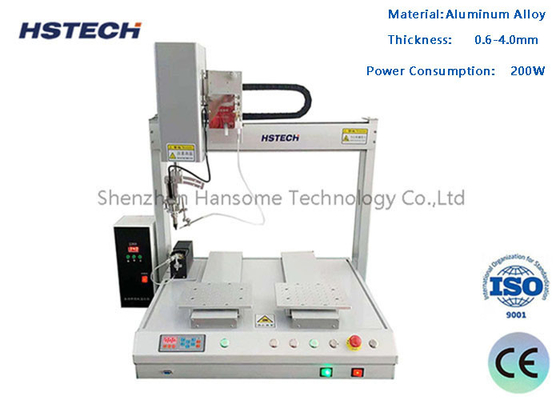

High Precision Soldering Machine For Electronics Manufacturing Industry 5 Axis Automatic Soldering Robot
Machine Introduction
This automatic soldering machine we call it a 5 axis soldering machine, it based on a 4 axis soldering robot and plus a 360 degree rotation R axis, so it has larger soldering range. It's mostly used in the electronics manufacturing industry to achieve blind soldering which in reflow soldering and wave soldering can not do, It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process, also widely used in PCB soldering wire, charger plug,soldering,connector plug,DC terminal,LED strip light soldering and other fields.
Technical Details
| Model | HS-S5331R |
| X/Y1/Y2/Z Working Range | 500*300*300*100mm |
| R Axis | 360° |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeat accuracy | ±0.02mm |
| Operation Method | Auto |
| Programming | Manual programming(Teach Pendant) |
| Control system | Constant control system |
| Control | Control board |
| Program storage | It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points) |
| File Storage Space | Hand held box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points) |
| Weight | 90kg |
| Dimension(L*W*H) | 716*585*800mm |
| Power Supply | 220V 50-60Hz |
| Temperature control range | 0-550C° |
| Iron Tip Cleaning | Air cleaning/Pneumatic |
| External Interface | USB + RS232 |
| Soldering Method | Point Soldering/Drag Soldering |
| Working Temp/Humidity | 5-40C°/20-90% RH |
Features
1, 5 axis soldering.
2, Stepper motor control.
3, Heating and broken tin control.
4, High quality Linear guide, ensure the moving smooth and flat.
5, Flexible soldering, available for spot soldering, drag soldering and other functions.
6, The machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
7, Teach pendant programming, can save max 99 groups programs,
8, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.
Machine detail
Application
The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.
Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.
About Packaging
