| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-S331R/HS-DS331R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam inside |
| Delivery Time: | 5~7 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
| Product Name: | Desktop Automatic Soldering Machine | Axis: | 4 Axis |
|---|---|---|---|
| Platform: | Single,double Options | Programming: | Teach Pandent |
| Motor: | Stepper Motor | Linear Guide: | Hiwin Brand |
| Solder Wire Thickness: | 0.5~1.0mm | Warranty: | 1 Year |

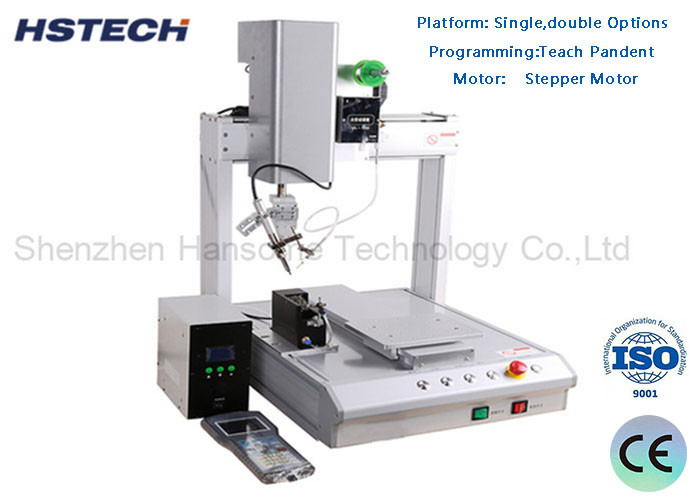

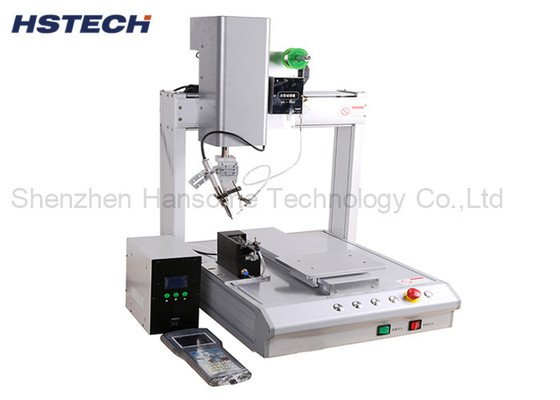

Multiple Axis 360 Degree Rotation Control Board Driven Automatic Solder Robot
Introduction
This tabletop/desktop type soldering machine is a hot sale product, which using the control board for the control system, a teaching box for manual programing, equipped with the high quality stepper motor and timing belt to driving the machine.

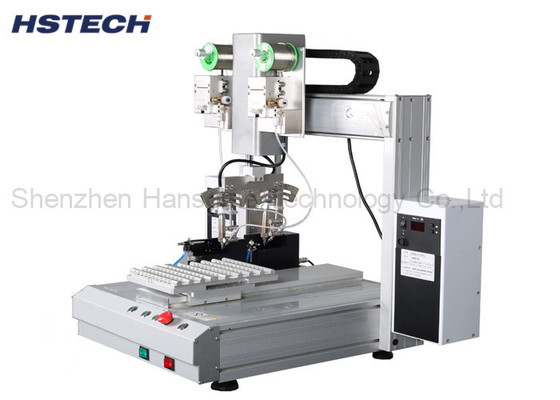

The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.
Application
1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
5, precision machinery/electrical products :VTR.
Features
1, High precision and very stable structural design, long-term guarantee equipment accuracy, friendly operating system.
2, Perfect soldering process settings, Functions include spot welding, drag welding.
3, Suitable for various soldering applications.Almost all components that can be soldered by hand that can be soldered by the robot, like .: normal PCB soldering, car electronic components, other electronics products, etc.
4, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,
5, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.
6, Using very mature control board to make the machine control system, also available for using PLC.
7, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
