| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SL7331S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Screw Locking Machine | Feeding: | Suction Feeding |
|---|---|---|---|
| Axis: | 6 Axis | Screw Feeder: | Double |
| Screw Driver: | Double | Moving Range: | 300*300*100mm/300*300*100mm |
| Port: | Shenzhen | OEM: | Yes |

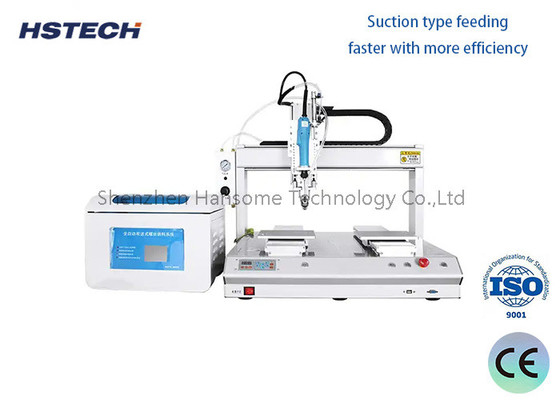

6 Axis Double Screw Feeder Screw Locking Machine Suction Feeding
| Model | HS-SL7331S | |
| Production name | 6Axis Automatic Screw Locking Machine | |
| Moving range(X1/Y1/Z1) | 300*300*100mm | |
| Moving range(X2/Y2/Z2) | 300*300*100mm | |
| X/Y axis moving speed | Closed loop motor :1-800mm/s | |
| Z axis moving speed | Closed loop motor: 1-300mm/s | |
| X/Y axis max load | Closed loop motor: 5KG | |
| Z axis max load | Closed loop motor: 3KG | |
| Power supply | AC110V/220V, 50/60Hz | |
| Repeat accuracy | ±0.02mm | |
| Document support | CAD CorelDraw | |
| Suitable screws | M1-M6 | |
| Machine dimension | 1092*585*800mm | |
| Machine weight | 85kg | |
Features
Main parts brand:
1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
