Automatic PCB CNC Router Machine 3 Axis Driven Vertical 40000RPM Manual Program

Automatic PCB CNC Router Machine 3 Axis Driven Vertical 40000RPM Manual Program
Automatic PCB CNC Router Machine 3 Axis Driven Vertical 40000RPM Manual Program Automatic PCB CNC Router Machine 3 Axis Driven Vertical 40000RPM Manual Program

Large Image :  Automatic PCB CNC Router Machine 3 Axis Driven Vertical 40000RPM Manual Program

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: RM-F500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 1 month
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Tabletop PCBA Router Machine Platform: Single
Programming: Manual Repeat Accuracy: ±0.01
Efficient Cutting Length: 270*220mm Machine Dimension: 420*520*860mm(L*W*H)
High Light:

pcb cnc router

,

pcba cutting machine

3 Axis Driven Vertical 40000RPM Manual Program Automatic PCB Router Equipment

Machine introduction

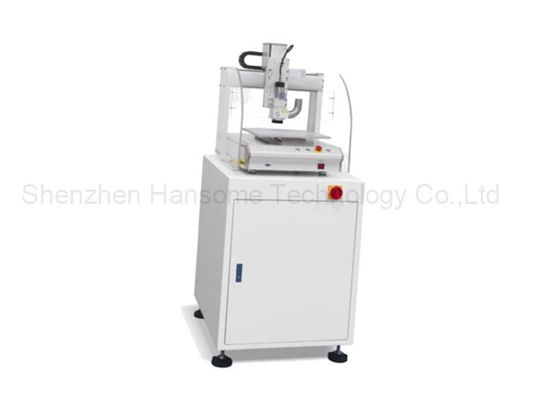

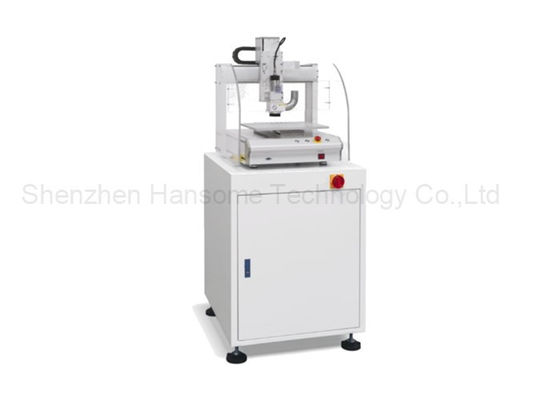

This machine RM-F500 is a vertical PCB router machine, the machine body including two parts, the bottom part is the structure and the upper part is a tabletop 3 axis moving PCB separating system. The separating system use the teach box for manual programming, so need manual set every mark points, it's a cost effective PCB router system.


Main features



1, 3 Axis desktop moving system.



2, Teach pendant for manual programming.


3, High speed routing spindle, speed at 20000~40000rpm.


4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.



5, Upper side dust collector method, make sure the platform clean.

6, Suitable for depaneling straight line, arc, and circular connectted boards.


7, Enclosed operating room, security and low noise.



Sepcfication



Model RM-F500
Structure Single Spindle,single platform
Efficienty cutting length 270*220mm(x*Y)
Cutting types Straight line, arc, circular
Moving speed X/Y/Z axis 300*250*90mm/s
Dust Collection method Upper collection
Spindle   20000~40000rpm
Routing Spindle Max40000rpm
Cutting speed 1-100mm/s adjustment
Cutting accuracy ±0.03mm
Repeat accuracy ±0.01mm
Programming Teach box
External connect USB
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Power supply 220V/110V,50/60Hz
Board thickness 0.8-3mm
Dust collector size 600*500*500mm
Dust collector power 750W,1HP
