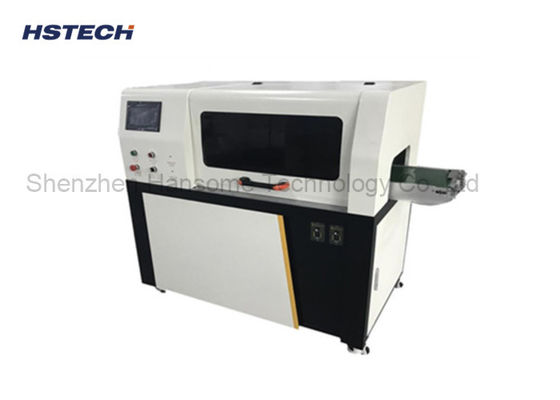

Horizontal Vertical PCB Depaneling Router With Well Shaped Separation CAB Blade

Horizontal Vertical PCB Depaneling Router With Well Shaped Separation CAB Blade
Horizontal Vertical PCB Depaneling Router With Well Shaped Separation CAB Blade

Large Image :  Horizontal Vertical PCB Depaneling Router With Well Shaped Separation CAB Blade

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-F390
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Well Shaped PCB Depaneling Machine Voltage: AC220V/110V,optional
Blade Brand: CAB Machine Power: 300kW(without Dust Collector)
Warranty: 1 Year Condition: New
High Light:

pcb depaneling machine

,

v cut pcb depanelizer

Well Shaped / Horizontal Vertical Separation CAB Blade Auto PCB Depaneling Machine



Features



1, Can separating well-shaped boards.

2, Can fit the request for horizontal and vertical board depaneling.

3, The machine can achieve rapid change, modular change quickly.

4, PLC and touch screen control.

5, Can connect the upstream PCB loader machine.

6, Germany brand CAB separating blade.

7, Easy operation, operator can use the machine with easy training.

8, Unique new sepration tool design, durability increase by 1.5-2 times.

9, Safety: Light curtain induction safety device ensures safe production.



Specification



Model HS-F390
Production name Well shaped PCB depaneling machine
Machine dimension 250mm* 800mm*1295mm
Blade dimension Circular blade ϕ60mm or φ80mm, linear blade 356x43.5x6mm
Blade material high speed steel
Separating width Small board 12mm, whole pin board 300mm
Voltage AC220V/110V, 50/60Hz
Machine power 300kW(without dust collector)
Separating thickness 1/3 of board thickness
Air supply 0.5~0.8Mpa
Separating speed 300mm/s
Separating width 1mm-200mm (The width of a single piece, not the width of the entire piece.)
Driven system Stepper motor/ servo motor
Suitable boards LED strip board/LED tube,aluminum baord and fiber glass boards
Weight Around 300kg
