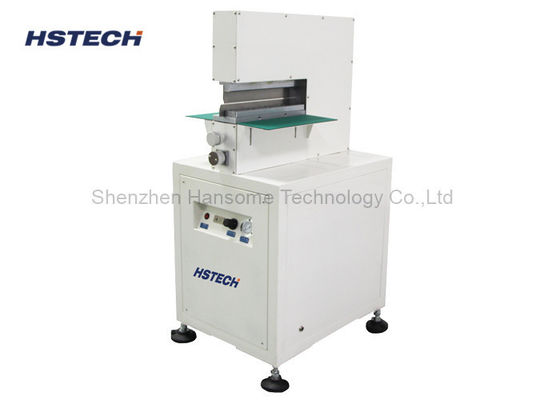

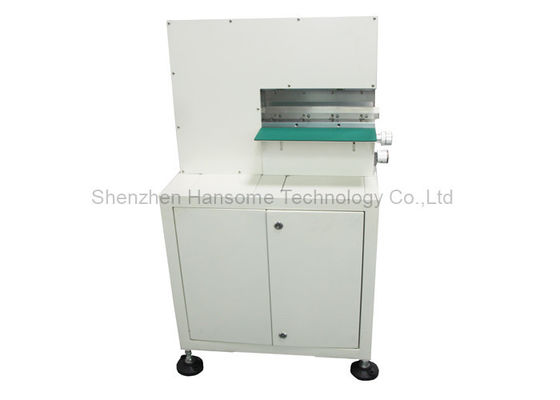

Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer

Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer
Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer

Large Image :  Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-320
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 200 sets per month
Detailed Product Description
Material: Sheet Metal Voltage: AC110V/220V
Blade: Guillotine Switch: Feet Switch
Suitables: All Boards With Or Without V-groove Movment And Siting: Whreel And Fit Cup
High Light:

pcb depaneling machine

,

pcb board cutting machine

Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer



Application



This machine is a ultra low cutting force stress Pneumatic PCB separator, widely used to all PCBA boards.(with V-groove or without)



Features



1, Double linear blade cutting,suitable for smd thin board,aluminum board,and all kinds of thickness boards,cutting range less than 2mm, no safety problem.
2, Lower the inner stress below 500uE,protect the components from damage.
3, Not friction cutting,no blade metal residue.
4, Pneumatic power, no cutting stress.
5, Both upper and down blade can be adjustable,use the knob to adjust the gap based on the pcb thickness,fit the V-groove thickness.



Specification



Model HS-320
Efficient cutting length 350mm(larger size need customized)
Machine size 650*500*1130mm
Air pressure 0.5~0.7Mpa
Upper components height 39mm(max)
Down components height 19mm(max)
Pcb thickness range 0.1-2.0mm(with V-groove),0.1-1.0mm(without V-groove)
Air consumption 200-400(L/min)
Weight 200kg

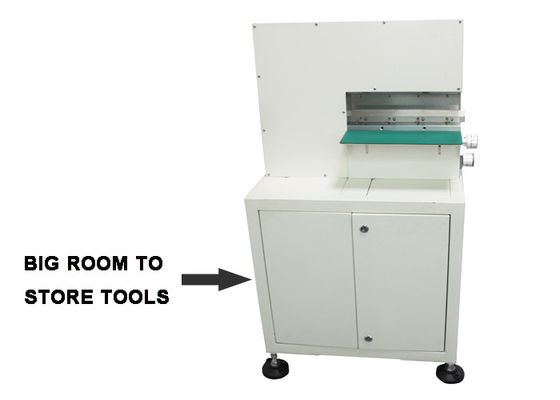

Special design with big room can store many tools



Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer 0

Counter and big size Air Cyliner



Pneumatic Driven Blade Metal Low Cutting Force Stress V Cut PCB Depanelizer 1
