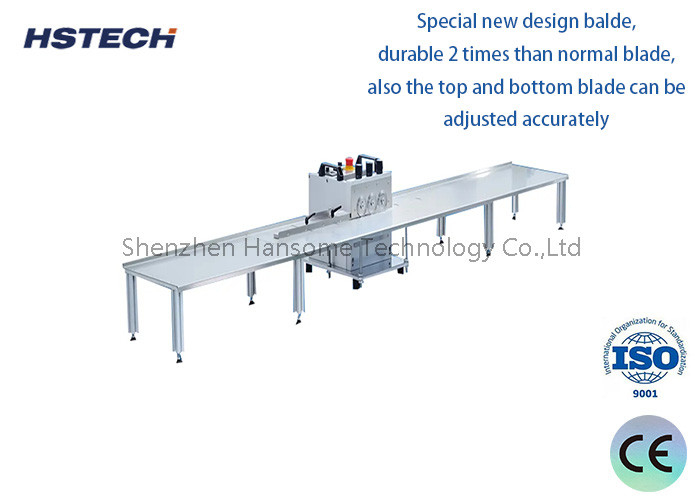

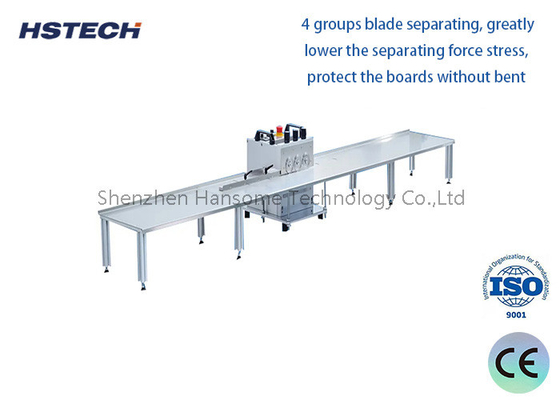

V-Groove PCB Cutting Machine with Circular & Linear Blade, 400mm Length

Name: V-Groove PCB Cutting Machine with Circular & Linear Blade, 400mm Length
Brand: Shenzhen Hansome Technology Co., Ltd.
SKU: HS-300
Price: 1,000.00 USD
Availability: InStock

Brand Name:	HSTECH
Model Number:	HS-300
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	100pcs per week

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Blade Miving PCB Separator

Other Name:

V-cut PCB Cutter Machine

Warranty:

1 Year

Usage:

PCB Board,aluminum Board,Cut V-cut Pcb

Condition:

New

Quality:

Durable,high Rank

Packaging Details:

Wooden package

Supply Ability:

100pcs per week

Highlight:

V-Groove PCB Cutting Machine

Linear Blade PCB Cutting Machine

Circular Blade PCB Cutting Machine

Product Description

V-groove PCB Separating Cutter with 400mm Length, Circular Blade Moving

Introduction

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

Features

1. PCB cutting length is unlimited

2. Cutting speed is adjustable by knob manually

3. limited inner strength, not easy to get crack

4. Blade edge height is adjustable according to different PCB thickness and V-slot depth

5. cutting by circular blades, few dust or residue generates; drive by motor , less pollution

6. cutting is not realized by friction, so there won`t be any metal residue

7. Blade is made by professional factory of taiwan, the material is the high speed steel from Japan.

8. Host is made by A-alloy and finish in one time, handy, less space occupied, simple and swift operation

9. Up & Down Blade are able to be adjusted accurately, the PCB Separator is compatible to all PCBs as long as it has V-slot

10. Motor is from Taiwan, full warranty and after-sale service, simple operation on maintenance.

11. High Efficiency Automatic V-cut PCB Depaneling Machine for LED Boards with long Platform

Specification

Model		HS-300
Voltage		110V/220V(optional)
Power		100W
Efficient cutting length		5-360mm
Blade size		Circular blade φ1253mm, Linear blade 36045*6mm
Blade material		Import high quality high speed steel tool
Separating speed		300mm/s
V-cut thickness		1/3 of the board
Separating width		Best 1-200mm
Machine size		620320450mm
Weight		50kg
