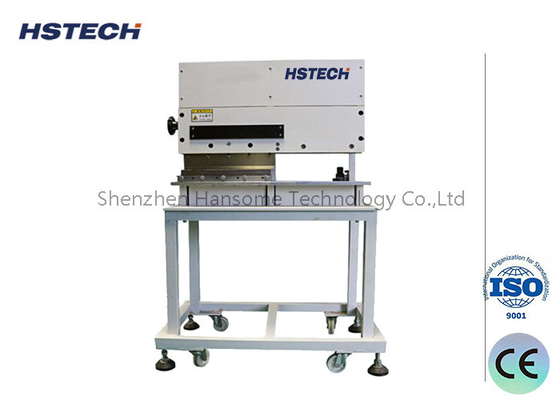

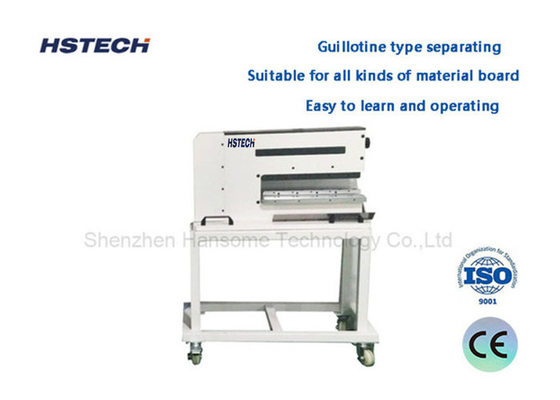

Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board

Brand Name:	HSTECH
Model Number:	HS-310L
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T,Western Union,D/P
Supply Ability:	200sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Pneumatic PCB Depanelizer

Other Name:

V-CUT PCB Separator

Voltage:

AC220V/110V

Pcb Length:

0~ 360mm

Depaneling Balde:

High Quality Guillotine Blade

Warranty:

1 Year

Packaging Details:

Wooden pacakge

Supply Ability:

200sets per month

Highlight:

Low Force Stress PCB Depaneling Equipment

Pneumatic Drive PCB Depanelizer

360mm Cutting Length V-CUT PCB Separator

Product Description

Low Force Stress PCB Depaneling Equipment for FR4 Aluminum Board with Pneumatic Drive

This advanced PCB depaneling equipment provides efficient and versatile cutting capabilities, specifically designed for precise separation of FR4, aluminum, copper, and fiberglass panels. The pneumatic drive system ensures cutting stability and durability while minimizing stress on sensitive components.

Advanced Cutting Technology

The machine features a straight-knife style parting design that finely separates pre-parted boards while avoiding bending or tensile stresses during the cutting process. Even sensitive SMD components like ceramic capacitors remain intact during separation, significantly improving product quality and reliability.

Key Features

Dedicated to separating PCB boards along V-cutting lines
Powerful flicker-free cutting with ultra-low stress
Pneumatic drive with solenoid valve control for efficient operation
Adjustable blade height for easy PCB board insertion gap adjustment
Independent lower blade adjustment for easy replacement and cost reduction
Customizable tray and positioning devices for non-V-groove PCB boards
Simple operation and maintenance suitable for non-skilled personnel

Technical Specifications

Product Name	PCB Depanelizer
Model	HS-310L
Part-up Height	Max 39mm
Part-down Height	Max 19mm
Air Supply	5Kgf/cm
Output	12.5 tons (gross)
Efficient Cutting Length	1-360mm
Linear Blade Size	360×43.5×6mm
PCB Thickness (With V Groove)	0.1mm~2.0mm
PCB Thickness (Without V Groove)	0.1mm~1.0mm
Blade Material	Import High Quality High Speed Steel Tool
Separating Speed	1-300mm/s
V-cut Thickness	0.3-3.5mm
Air Consumption	200-400 (L/min)
Machine Size	700×325×400mm
Weight	130kg
Suitable Board	All V-cut Boards
