| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-VD331 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 5~7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
| Product Name: | Visual Glue Dispensing Machine | Axis: | 3 Axis |
|---|---|---|---|
| Working Range: | 400mm*300mm*2 | Speed: | Max 1000mm/s |
| Condition: | New | Warranty: | 1 Year |
| High Light: | commercial vacuum packaging machine,automatic glue dispenser |
||

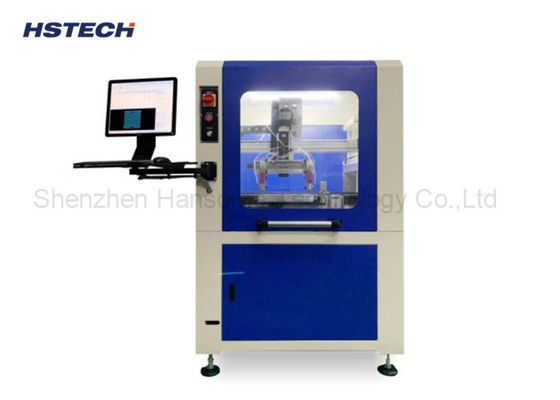

Stainless Steel Machine Body PC Control 3 Axis Visual Dispensing Machine
Specification
| Model | HS-VD331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| Air pressure | 0.5-0.7Mpa |
| Light source | LED source |
| X/Y/Z working range | 400mm*300mm*2 |
| XYZ speed | 1000mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Gule viscosity range | max≤5000LPS |
| Motor | Stepper motor |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | CSK(Taiwan brand) |
| Photoelectric switch | PEPPERL+FUCHS(Germany brand) |
| Operation system | Windows |
| Gross weight | 600kg |
