Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-VD331 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package |
Delivery Time: | 7~9 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 50 sets per month |
Product Name: | Visual Glue Dispensing Machine | Warranty: | 1 Year |
---|---|---|---|
Control: | Touch Screen | Relay Brand: | Schneider |
Optoelectronic Switch: | OMRON | Material: | Aluminum Alloy |
Control System: | PLC | Power Consumption: | 200W |
High Light: | PLC Control Glue Dispensing Machine,SMEMA Glue Dispensing Machine,Electronic Assembly Glue Dispensing Machine |

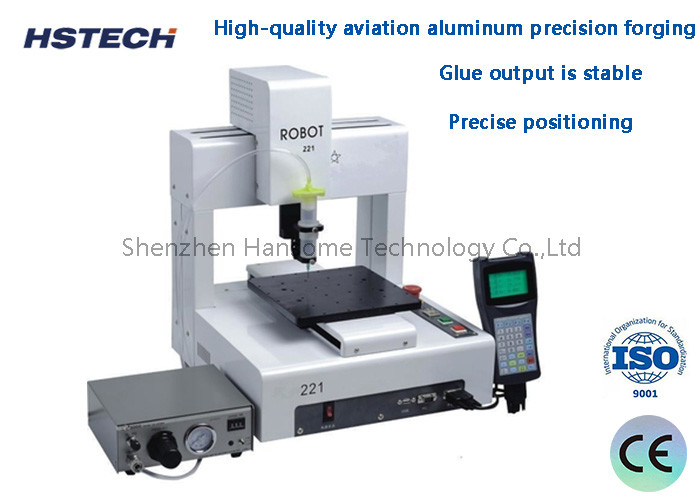

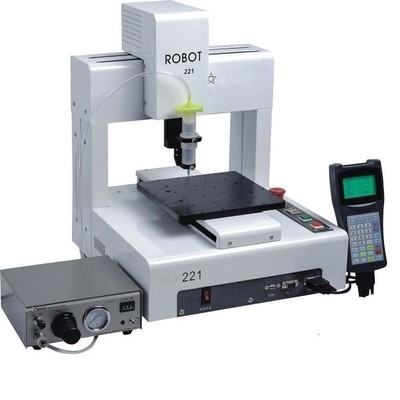

SMEMA PLC Control Signal Visual Glue Dispensing Machine FOR Electronic Assembly
Introduce
The glue dispensing machine, also known as glue coating machine, glue dripping machine, glue dispensing machine, glue filling machine, etc., specializes in controlling fluids. The automated machine that drips and coats the fluid on the surface of the product or inside the product can realize three-dimensional and four-dimensional path dispensing, precise positioning, precise glue control, and no stringing, no glue leakage, and no glue dripping. The dispensing machine is mainly used to accurately point, inject, apply and drip glue, paint and other liquids in the product process to the precise position of each product. It can be used to realize dotting, drawing lines, circles or arcs.
Model | HS-VD331 |
Voltage | AC110V/220V,50/60Hz,Meanwell brand |
Air pressure | 0.5-0.7Mpa |
Light source | LED source |
X/Y/Z working range | 400mm*300mm*2 |
XYZ speed | 1000mm/s |
Y platform | 190*150mm |
Repeat accuracy | 0.02mm |
Gule viscosity range | max≤5000LPS |
Motor | Stepper motor |
Driven system | Timing blet for X/Y, Z axis screw |
Document support | CAD,CorelDRAW |
Loading capacity | X/Y:10kg,Z:5kg |
Linear Guide | CSK(Taiwan brand) |
Photoelectric switch | PEPPERL+FUCHS(Germany brand) |
Operation system | Windows |
Gross weight | 600kg |
