| Product Name: | 3Axis Selective Coating Machine | Axis: | 3 Aixs Or 5Axis |
|---|---|---|---|
| Power Supply: | AC220V/110V | Transport Height: | 920±20mm |
| Machine Weight: | 600kg | Machine Dimension: | 1060x1200x1700mm |

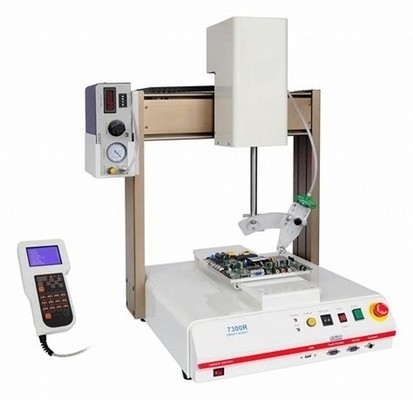

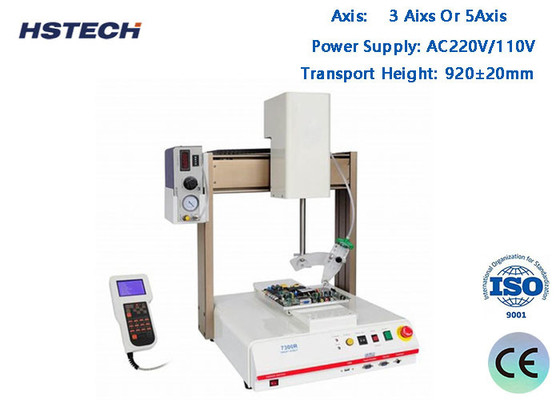

High-Speed 3Axis Glue Dispensing Machine with Intelligent Linear Guide Adjustment
1. X, Y, Z axis drive platform adopts precision ball screw with Fuji servo motor.
2. Achieve selective coating for various kinds of PCB.
3. Straight line, circle, arc coating and dispensing.
4. Can effectively and evenly coat edge of the components, eliminate the spray shadow effect.
5. Accuracy: ±0.02mm.
6. With high-speed, high reliability, high stability of the transmission and control system.
7. 2 valves can switch spray and coating action automatically, to achieve high-density PCB coating process.
8. With smart automatic width adjustment function (automatically adjust after inputting the board width).
| Product name | Selective conformal coating machine |
| Model | HS-CC300 |
| Transmission height | 920±20mm |
| Conveyor width | 50-450mm/or customized |
| Transmission | L to R, or R to L |
| Component height | up and down max 100mm |
| Size of PCB board edge | ≥5mm |
| Transport speed | 0-12000mm/min |
| 3 Axis drive speed | 800mm/s |
| Repeat accuracy | ±0.02mm |
| Storage programs | up to 1000 |
| Power supply | AC220/110V |
| Air pressure | 4-kgf/cm2 |
| Glue tank | 10L,manual stirring |
| Control mode | Industrial PC+Motion control card |
| Linear guide adjustment | Intelligent adjust |
| Programming mode | Manual teaching |
| Communication port | SMEMA |
| Lighting source | Self-equipped lighting source |
| Detection lighting source | Self-equipped |
| Software | Windows+coating software |
| Driving Motor | Stepper motor(2pcs) |
| 3 axis driving mode | Servo motor+screw driver module+Electric Cylinder |
| Number of rubber valves | 1 spray valve+ 1 dispensing valve |
| Spray width | 3-20mm |
| Spraying method | Automatic |
| Total power | 2.6kW |
| Machine body | Stainless steel |
| Machine weight | 600kg |
| Machine dimension | 1060x1200x1700mm |
2. According to the glue, it can be divided into: single liquid dispensing equipment, double liquid dispensing equipment, multi-component dispensing equipment, etc.
3. According to the classification, it can be divided into: thread dispensing equipment, speaker dispensing equipment, mobile phone button dispensing equipment, patch dispensing equipment, board wiper, etc.
4. According to the characteristics of glue, it can be divided into: silicone glue dispensing equipment, UV glue dispensing equipment, and SMT red glue dispensing equipment.
5. According to the number of control axes, it can be divided into: two-axis dispensing equipment, three-axis dispensing equipment, four-axis dispensing equipment, etc.
