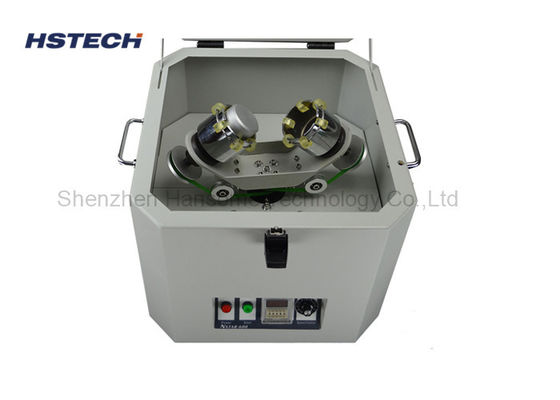

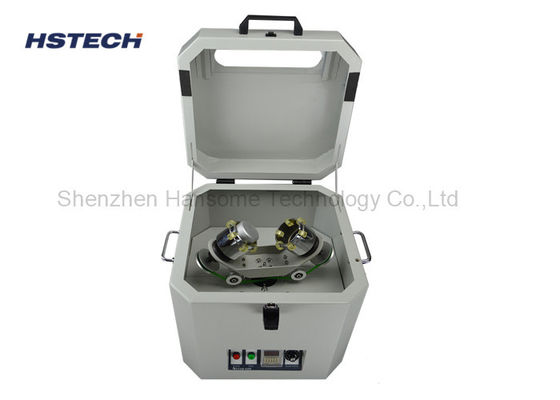

Cream Mixing Solder Paste Machine Speed Control Operation Time Display

Cream Mixing Solder Paste Machine Speed Control Operation Time Display
Cream Mixing Solder Paste Machine Speed Control Operation Time Display Cream Mixing Solder Paste Machine Speed Control Operation Time Display

Large Image :  Cream Mixing Solder Paste Machine Speed Control Operation Time Display

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: NS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 2~3 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Product Name: Automatic Solder Paste Mixing Machine Other Name: Solder Cream Mixer
Timer: DIgital LED Display Power: AC220V, Or 110V
Condition: New Warranty: 1 Year
High Light:

solder paste warm up machine

,

solder paste aging machine

Speed Control Operation Time Display Solder Paste / Cream Mixing Machine



Application



This machine Slope efficiently and evenly mixes the solder pasteto a liquid state. It helps to achieve better resultsof stencil orienting and reflowing process. The use of the mixer also reduces the chances of absorbing air moisture as it is no longer necessary to remove the lid of the solder paste jar before the paste is actually usedin the production.



Features



1, The solder cream jars are placed in 45 angle, and run around its axis line, so the solder cream will not ahere to the jar cover.
2. Compatible with most brand 500g solder paster,can mixing two tins at one time, save time and improve efficiency.
3. Double security design to asure the safety of operators.
4. The air bubbles can be eliminated while the solder paste is being mixed.
5, The contorl of the solder paste mixing is considered fully with using special control circuit.
6, The rotating speed has proved by practice, so the impact against the tin power and the effect to solder paste quality in the rising temperature are avioded.
7. Without water, does not destroy the shape of tin.

Specification

Model: NSTAR-600
Wattage: 60W
Power: AC220V, 50Hz
Roating speed: Primary rotating:1400RPM;Sencond rotating:400RPM
Working Capacity: 500g*2jar;
Tin Pot's Size: M diameterΦ60-Φ67standard one
S diameterΦ53-Φ60(for choose, please contact us )
L diameterΦ67-Φ74(for choose, please contact us)
Time Setting: 0.1~9.9mins, adjust0.1min per time;
10~30mins, adjust1.0min per time
Display & Caution: LED digital display,light blink and buzzer warning
Machine Demension: 410*410*490mm(W*D*H)
Packing Demension: 420*420*500mm(W*D*H)
Net/Gross Weight: 40KG/45KG
