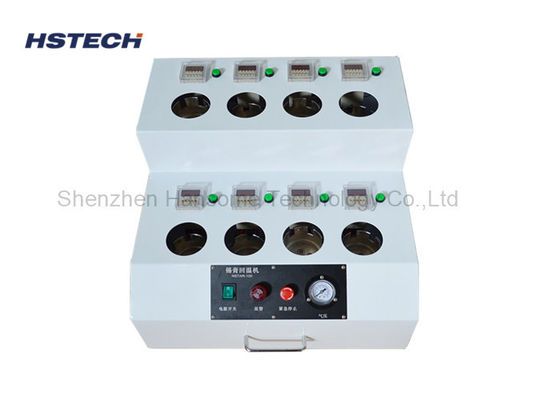

Automatic Alarm Solder Paste Machine 8 Tank Standard Size Solder Paste Aging Machine

Automatic Alarm Solder Paste Machine 8 Tank Standard Size Solder Paste Aging Machine
Automatic Alarm Solder Paste Machine 8 Tank Standard Size Solder Paste Aging Machine

Large Image :  Automatic Alarm Solder Paste Machine 8 Tank Standard Size Solder Paste Aging Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SP-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 3~5 work days
Payment Terms: T/T
Detailed Product Description
Product Name: Solder Paste Aging Machine Other Name: Solder Paste Check Right Machine
Air Supply: 0.4Mpa Power: 220V
Condition: New Warranty: 1 Year
High Light:

solder paste check right machine

,

solder paste aging machine

8 Tank Standard Size Solder Paste Aging Machine with Automatic Alarm System



Introduction



Solder paste aging machine, also called solder paste timing machine, it used to check if the solder paste are ready for application, when the solder paste is taken out from the refrigerator, the temperature is low, and this machine use the timer to timing the solder paste back to room temperature, it's easy operation, set the time(hours or minutes) and wait for alarm ring.



Features



1, Electricy and air pressure driven combined.
2, Use the timer to timing the solder paste back to room temperature instead of operator record.
3, LED display timer system, easy to set and accurate timing.
4, Aging tank is designed for standard size solder paste.
5, Aging tank with FIFO function, after timing, take out the solder paste during order.
6, In the case of out of power accidently, even if not reach setted time, solder paste bottle will automatically pop up.
7, With alarm system, it rings when finished timing, also equipped with a emergency button.

Specification

Model HS-SP-8
Timer LED display timer
Tank size For standard solder paste, others need customized
Power AC220V, 50Hz
Air Pressure: 0.4Mpa
Placing tank: 8 tanks
Machine Demension: 500*520*320mm(W*D*H)
Gross Weight: 22KG
