Metal Sheet PCB Magazine Loader With SMEMA Communication Interface

Metal Sheet PCB Magazine Loader With SMEMA Communication Interface

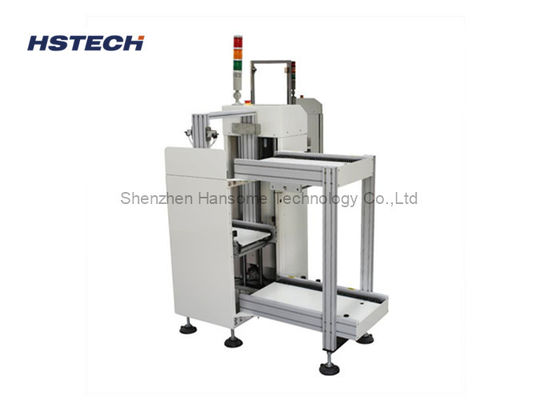

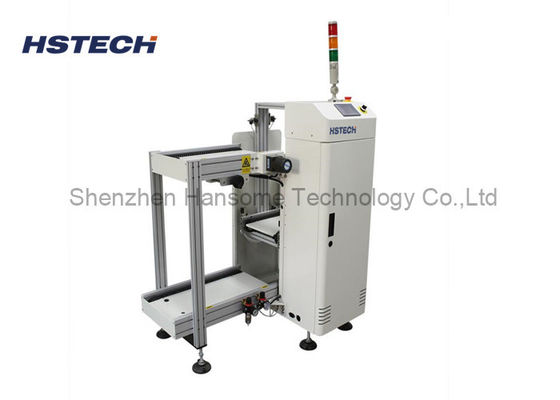

Metal Sheet PCB Magazine Loader With SMEMA Communication Interface Metal Sheet PCB Magazine Loader With SMEMA Communication Interface

Large Image :  Metal Sheet PCB Magazine Loader With SMEMA Communication Interface

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-250LD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~10 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: PCB Loader Color: White
Power Supply: AC110V/220V,50/60Hz PLC: MITSUBISHI
Relay: Schneider Optoelectric Switch: Omron
High Light:

smt production line equipment

,

pcb loader and unloader

Sheet Metal SMEMA Communication Interface PCB Loader Board Handling Equipment



Application



This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.



Specification



Model HS-250LD HS-330LD HS-390LD HS-460LD
Voltage AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension (50*50)~(350*250) (50*50)~(455*330) (50*50)~(530*390) (50*50)~(530*460)
Magazine dimension 355*320*565 460*400*565 535*460*565 535*530*565
Air supply 0.4~0.6Mpa
Transport height 920±20(mm) standard
Loading time 6 sec
Magazine replace time around 20 secs
Transport direction L to R, or R to L,optional
PCB thickness Min 0.4mm
Pitches 1-4(10mm step)
Communication SMEMA
Machine dimension 1100*780*1200 1400*860*1200 1500*920*1200 1600*1120*1200
Weight Approx 140kg Approx 180kg Approx 220kg

Approx 230kg



Features



1, True color touch screen control

2, Mitsubishi PLC

3, Magazine capacity: top 1, bottom 1, or customized

4, Selective pitch: 10mm,20mm,30mm,40mm

5, PCB transport direction: L - R, or R - L,optional

6, Manual/Automatic run mode selection

7, Front rail fixed or rear rail fixed,optional

8, Standard height for SMT application(920±20mm)

9, Tower light display

10, SMEMA signal

Contact Details
Shenzhen Hansome Technology Co., Ltd.

Contact Person: Mr. Rudi Jin

Tel: 86-755-23209382

Fax: 86-755-23209382

Send your inquiry directly to us (0 / 3000)
