| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-UL250 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

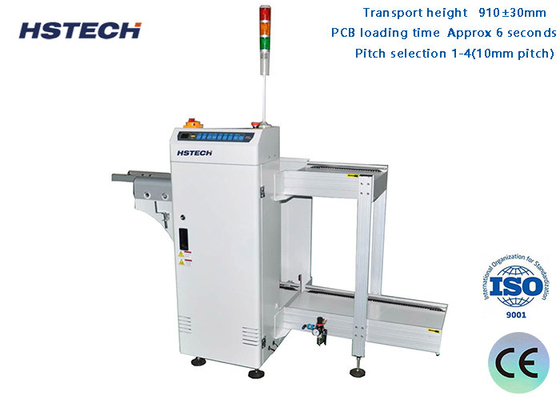

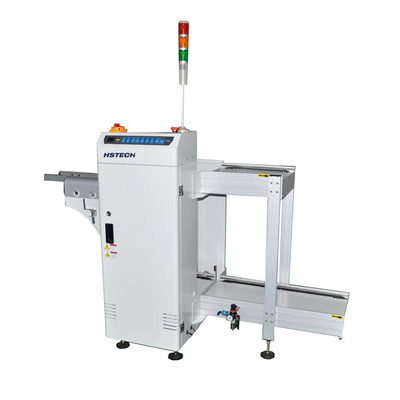

| Product Name: | PCB Magazine Unloader | Transport Height: | 910±20mm |
|---|---|---|---|
| Transportation Direction: | L~R, Or R~L | Board Collect Time: | Approx 20 Seconds |
| Magazine Change Over Time: | Approx 30seconds | Track Fixed Side: | Front Side |
| PCB Thickness: | Min 0.6mm | Pitch Selection: | 1-4(10mm Pitch) |
| Power Supply: | 220V,50/60Hz,±10% | Power: | 0.05kW |
Features
1, Module design.
2, Stability enhanced by robust design.
3, Economic design arm test.
4, Smooth and parallel width adjustment.
5, Three magazine racks application.
6, Top and bottom pneumatic clamps to secure magazine rack.
7, No PCB breakage guaranty during loading &unloading.
8,SMEMA compatible.
Technical details
| Function | This unit is used for unloading the PCBs. |
| Transport height | 910±30mm |
| PCB loading time | Approx 6 seconds |
| Magazine change over time | Approx 30 seconds |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side(or specify) |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 2 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Pitch selection | 1-4(10mm pitch) |
| Signal | SMEMA |
Specification
| Model | HS-UL250 | HS-UL330 | HS-UL390 | HS-UL460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1900*800*1200mm | 2320*880*1200mm | 2620*940*1200mm | 2620*1080*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 220kg | 280kg | 320kg |
Operation diagram
