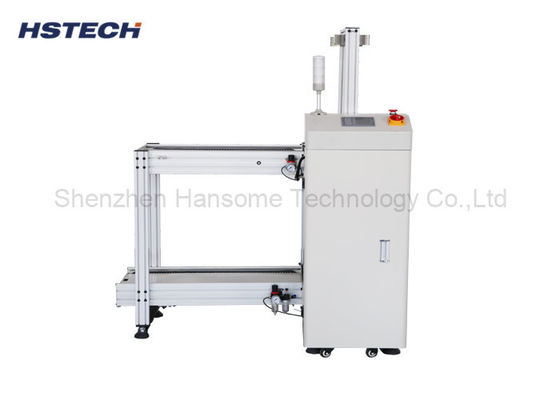

Smooth Lead Screw PCB Handling Equipment Light Display PCB Loader Machine

Smooth Lead Screw PCB Handling Equipment Light Display PCB Loader Machine
Smooth Lead Screw PCB Handling Equipment Light Display PCB Loader Machine

Large Image :  Smooth Lead Screw PCB Handling Equipment Light Display PCB Loader Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-330LD
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~10 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Automa PCB Loader Color: White
Power Supply: AC110V/220V,50/60Hz PLC: MITSUBISHI
Relay: Schneider Optoelectric Switch: Omron
High Light:

smt production line equipment

,

smt assembly equipment

Smooth Lead Screw Light Display PCB Handling Equipment / Loader Machine



Application



This machine is used for the start of SMT production line, pushing the PCBs out of the magazine, and transport to the rail.



Specification



Model HS-250LD HS-330LD HS-390LD HS-460LD
Voltage AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension (50*50)~(350*250) (50*50)~(455*330) (50*50)~(530*390) (50*50)~(530*460)
Magazine dimension 355*320*565 460*400*565 535*460*565 535*530*565
Air supply 0.4~0.6Mpa
Transport height 920±20(mm) standard
Loading time 6 sec
Magazine replace time around 20 secs
Transport direction L to R, or R to L,optional
PCB thickness Min 0.4mm
Pitches 1-4(10mm step)
Communication SMEMA
Machine dimension 1100*780*1200 1400*860*1200 1500*920*1200 1600*1120*1200
Weight Approx 140kg Approx 180kg Approx 220kg

Approx 230kg



Features



1, Multiple magazines capacity.

2, Mitsubishi PLC,true color touch screen control

3, Magazine capacity: top 1, bottom 1, or customized

4, Selective pitch: 10mm,20mm,30mm,40mm

5, PCB transport direction: L - R, or R - L,optional

6, Manual/Automatic run mode selection

7, Front rail fixed or rear rail fixed,optional

8, Standard height for SMT application(920±20mm)

9, Tower light display

10, SMEMA signal
