| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-203 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
| Product Name: | V-cut PCB Separator | Blade: | Upper Circular Blade And Bottom Linear Blade |
|---|---|---|---|
| Operation: | Blade Moving | Switch: | Foot Switch |
| Suitable Board: | FR4,aluminum,fiber-glass Board,LED Board,LED Strip | Color: | Blue,white |
| High Light: | pcb depaneling machine,v cut pcb depanelizer |
||

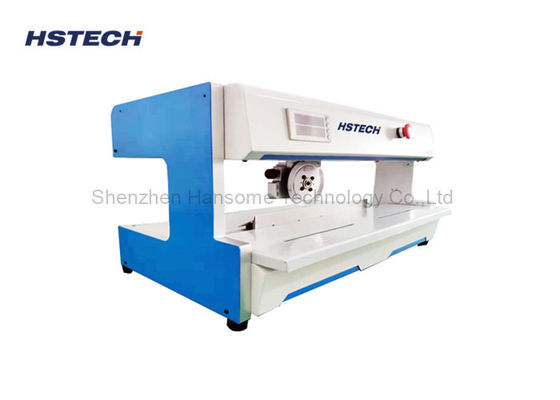

Patent Design Circular Linear Blade Combined Manual V-cut PCB Separating Machine
Features
1, It can cut rapidly regardless of the quantity, very economic.
2, Upper circular blade and bottom linear blade all using import high quality steel, can be sharpen and repeat using.
3, Moving range:(0~400mm/600mm)as customers' request, circular blade can be adjustment(0~5mm),suitable for different thickness board, slove the problem for differenct V-cut groove.
4, The max cutting width is unlimited, single PCB best at 1~200mm.
5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.
6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.
Specification
| Model | HS-203 | HS-206 |
| Voltage | AC110V/220V 50/60Hz | |
| Blade size(circular blade) | ϕ125mm*30mm*3mm | |
| Blade size(linear blade) | 420mm×65mm×6mm | |
| Max cutting length | 5~400mm | 5~600mm |
| PCB thickness | 0.8~3mm | |
| Separation speed | 300~500mm/second(adjustable) | |
| Separation width | Best 1~200mm | |
| Components height | ≤32mm( or customized) | |
| Power | 60W | |
| Machine dimension | 710x450x420mm | 900x450x420mm |
| Weight | 55kg | 75kg |
Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)
