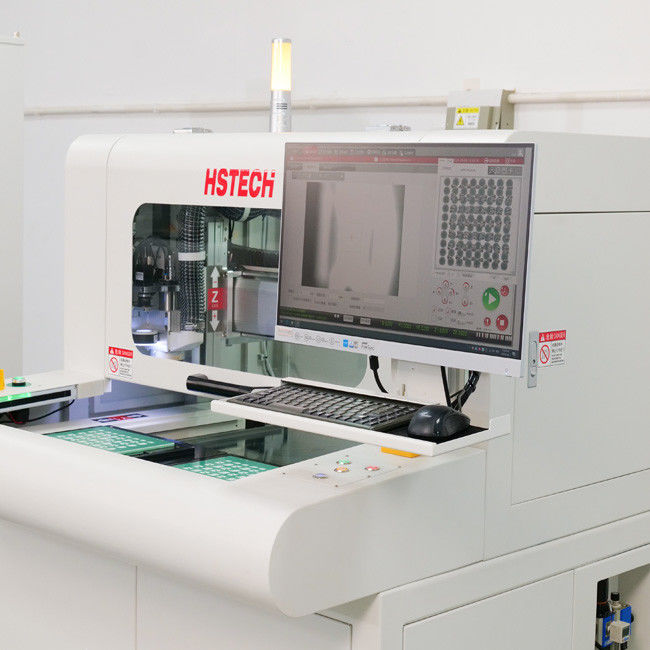

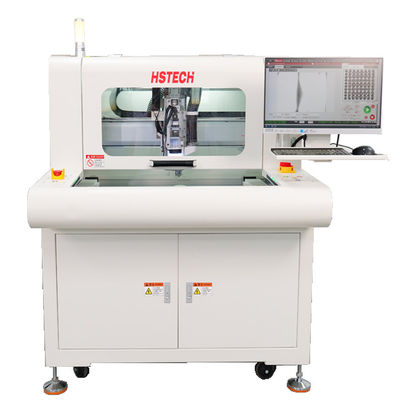

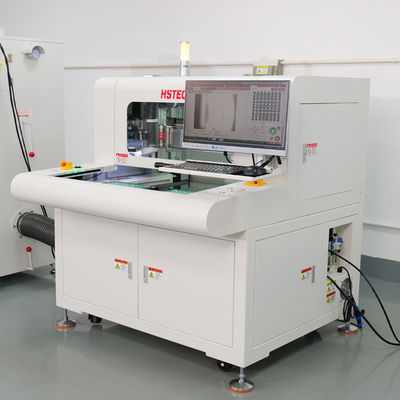

Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle

Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle

Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle
video
Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: RM-288
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package with foam
Delivery Time: 1 month
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: PCBA Router Machine Color: White
Platform: Double Cutting Tool: Milling Cutter
Operation System: Windows Scrap Collect: Dust Collector
Warranty: 1 Year Voltage: AC380V 50HZ
Highlight:

pcba cutting machine

,

inline pcba router machine

Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle​

Milling cutter automatic Router machine, also called automatic PCBA cutting machine, with high speed spindle drying milling kit to cut high density pcba and other material substrate.

Main features
1, Electric control, no air source.
2, High stability,easy maintenance.
3, Simple operation, short changeover time.
4, Design for small and medium size PCBA board.
Sepcfication

Model RM-288 RM-388 RM-888
Structure Single Spindle,dual work platforms Dual Spindle,dual work platforms
Machine Size(mm) 1000*1200*1550 1200*1400*1550
Gross Weight 700kg 900kg
Dust collector size(mm) 625*600*1600
Dust Collection method Bottom collection
Work platform size 300*400mm 410*510mm
Platform driving type Double rotary platform,precision slicer with 3phase motor inverter
Driving system X/Y/Z axis driven by servo motor,W axis driven by three phase motor frequency inverter
Routing Spindle 5000~50000rpm,auto cooling 5000~60000rpm,auto cooling
Cutting speed 1-100mm/s
Cutting accuracy ±0.05mm
Repeat accuracy ±0.02mm
Axis moving speed 800mm/s
Z axis system Screw driven,dual guide
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Tool life control Software program control
Active protective function safty light curtain
Security door Manual door
Error alarm Yes
Program method Self programing,camera controlled by keyboard and mouser


Machine dimension
Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle 0

Ultra silent vacuum dust collector


Voltage 380V/50Hz
Power 2.2KW
Air Pressure 1500Pa
Max air flow 2800m³/H
Noise <77dB
Air inlet φ125mm
Filter efficiency 99%
Material water and oil proof
Filter rating 3-5μm
Quantity 1pcs
Filter type Nagetive pressure filtration
Dust clear mode Hand vishaking
Capacity of dust container 12L
Dimension 625x600x1160mm


Machine details
High Speed Sycotec Germany brand Spindle
Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle 1

Windows7/10 English version operating system,simple for debugging and operation.
Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle 2

Super vision system

With high speed CCD camera allow the user to edit the cutting path easily with it's automatic calibration feature resulting to a very accurate cutting operation.

Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle 3

Movment system
The X,Y and Z axis are made of grinding grade precision ball guide screw and driven by AC servo motor, achieve a good and stable movement performance, with frequency up to 1K Hz high speed response time and self adopting shock reduction filters.
Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle 4

Innovative Hanging Router Kit
The design of the driving shaft located in the center, and slave on both sides, which ensure the stability and accuracy,results to a harmonious structure and compacy size.(50% smaller than industry standard).
                                                                                                  Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle 5
Rotary workbench structure
The workbench design is driven by a high pulling torque segmentation(180degree),provides more precision and stability than cylinder driven machines workbenches.This innovative rotary workbench design also allows simultaneous operation of defferent cutting algorithms on both the A and B workbench,thereby reducing changeover idle capacity and maximizing productivity.
                                                                                                  Rat Bite PCB Depaneling Machine / Auto PCB Router with 60000 RPM Spindle 6
Blade management
Allowing the cutting blade setup by stages greatly reduces the cost for consumables.
Milling cuter
The milling cutter is driven by a high speed spindle with the advantages of a reduced cutting force, high accuracy,low noise and suitable for all the curve pcbs,like round,straight line,L or U type,squares and arc shapes.
Self recovery diagnostic system
The self diagnostic system allows easy troubleshooting of malfuctions during production and reduces downtime.



About Us:



Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.

We are a high-tech enterprise with independent intellectual property riahts, the company is mainly enaaged in the research and development, production and sales of SMT/THT production line board handling equipment.

We have more than 10 years' professional SMT industry experience. With strict production,inspectiondebugging and packaging process, we insist on providing clients with good service pre-sales, in-salesand after-sales services. We have professional QC person to check the quality of the equipment andspare parts. After manufacturing, all equipment will be carefully tested and debugged before shipment.
