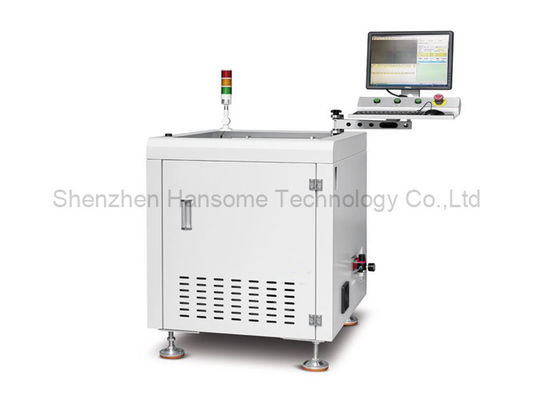

Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding

Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding
Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding
Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding

Large Image :  Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: AR-7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, foam protection
Delivery Time: 20~30 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per month

Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding

Description
Product Name: Mini Offline PCBA Router Machine Material: Sheet Metal
Fixture: Needed Power Supply: AC380V, 50/60Hz
Communication: SMEMA Working Table Size: 50*50~410*460mm
PCBA Loading Method: Manual Dust Collector: Bottom Collection
High Light:

pcb cnc router

,

inline pcba router machine

Single / Double Work Platform Manual Feeding Offline Mini PCB Router Machine



Features



1, Offline automatic separating.

2, It's a mini PCBA router, suitable for small size PCB, and factory room saving requirement solution.

3, Customized fixtures.

4, PC and CCD visual system.

5, Programming with compensation and dust collection.

6, Available for max 410-510mm size PCBA.

7, Flexible for cutting two differenct type products.

8, Open platform for manual feeding and unloading, also can equipped with optional mechanical arm(robot).



Specification



Model AR-7 AR-7 mini
Power supply AC380V, 50/60Hz, 3KW
Working size 50x50~410x460mm(max) 50x50~260x310mm(max)
Loading mode Manual
Cutting spindel/speed 5000~60,000 rpm
PCB thickness 0.4-4mm
Separating speed 1-100mm/s
Cutting accuracy ±0.05mm
Fixing type Fixtures
Programing Visioin teaching, inline programing
Milling kit φ0.8~φ3.0 right side ratation, shank Tungsten steel
Dust collection method Bottom dust collection
Dust collector 3 phase, 380V, 1.2KW
Noise <75dB
Control system Industrial PC
Spindle brand Germany brand, Sycotec 4025
Servo motor A5 series
Motion control 4 axis motion control board
Lead screw C5 grinding screw lead
Linear guide P rank silence guide
Camera Germany brand Imaging 40W industril camera
Machine size 700*800*930 mm 500*650*930mm
Screen
17inch



Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding 0

Mini Offline PCB Router Machine Single / Double Work Platform Manual Feeding 1
