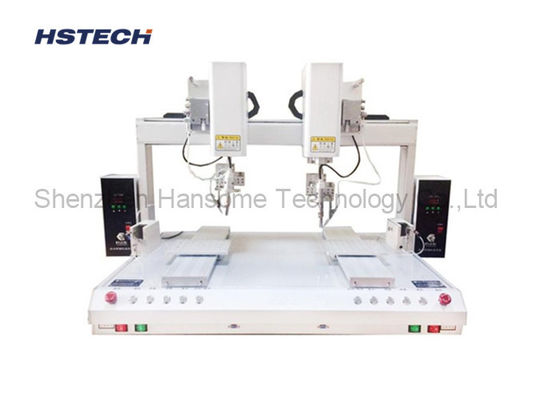

RS232 Communication Automatic Soldering Robot Stepper Motor 8 Axis

RS232 Communication Automatic Soldering Robot Stepper Motor 8 Axis

  • RS232 Communication Automatic Soldering Robot Stepper Motor 8 Axis
RS232 Communication Automatic Soldering Robot Stepper Motor 8 Axis
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S800H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam inside
Delivery Time: 7~10 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Contact Now
Detailed Product Description
Product Name: 8 Axis Automatic Soldering Robot Axis: 8 Axis
Platform: Double Soldering Head: Double
Material: Aluminum Alloy Voltage: 100-240V AC
Type: Desktop Condition: New
High Light:

auto soldering machine


automated soldering equipment

RS232 Communication Stepper Motor 8 Axis Automatic Soldering Robot




The 8 axis automatic soldering machines is a double 4 axis soldering machine, which add another 4 axis robot based on a 4 axis soldering robot, which greatly improves the efficiency, also make the soldering no dead angle, suitable for spot welding and drag welding, such as PCB, frequency divider,etc.




1, Additional nitrogen supply fixture, ensure the best welding quality.
2, The patent sponge cleaning iron hear mechanism, solve the traditional blowing cleaning caused by the residual tin on the iron head can not be cleaned, resulting inpoor welding or solder joint pollution.
3, High strength iron head, long lifespan than other brands of more than 5 times.
4, The lastest card type design, easy disassemble, and will not change the position of the head because of the replacement of the iron head.
5, More than 500 kinds of iron head form, can be designed according to the needs of customer's differenct kinds of iron head.

6, Soldering controller has many groups of welding condition memory, can according to different sizes of the solder joints as setted.

8, The teaching padent setting mothod, the operation is very simple, without professional computer engineer to operate, general operator can within 3 hours complete educational and training.

9, The accuracy is 0.02mm, ensure the accuracy of the welding position in the process of production.

10, Equipped with automatic conveyor belt, to achieve full automatic operation, easy online.

11, Optional CCD to achieve inspection function.




Model HS-S800H
Product name 8 axis solering robot
Input Voltage AC110/220V,50/60Hz
Wattage Max.300W
Output voltage DC24V
Moving range-- X axis 2x300mm
Y1 axis 2x300mm
Y2 axis 2x300mm
Z axis 2x300mm
R axis 360 degree
Speed(X/Y1/Y2/Z) 5-800mm/sec
R axis ±360degree
Repeat accuracy(X/Y1/Y2/Z) ±0.02mm
Working load capacity 5kg
Fixture load capacity 3kg
Material Aluminum alloy, surface paint
Driving method Timing belt
Motor Stepper motor, 2 phase, 3A
Preheating Temp Range 50-500℃
Program capacity max99, spot file: max 999
Communication port RS232
I/O input 8 in 16 out
Solder tin diameter 0.3-1.5mm
Storage extension support flash storage
Programming mode Wroten or teching
Machine dimension 880*580*645mm
Net Weight 65KG
