| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-1046 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam inside |
| Delivery Time: | 5 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |
| Product Name: | Tape Package Axial Components Lead Forming Machine | Capacity: | 4000~6000pcs/hrs |
|---|---|---|---|
| Machine Dimension: | 400*250*190mm | Machine Weight: | 20kg |
| Condition: | New | Warranty: | 1 Year |
| High Light: | component forming machine,pcb lead cutting machine |
||

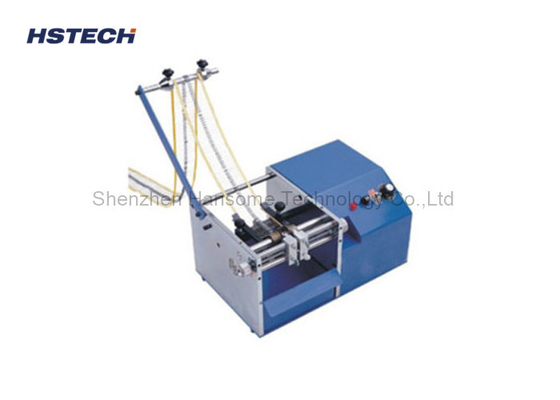

Steel Blade Resistors Dipole Axial Components Manual Lead Forming Machine
Application
This machine used to tape packaged resistors, dipoles, etc axiail components forming and lead cutting.
Features
1, Suitable for tape packaged components forming and feet cutting, like resistors, dipoles.
2, Components forming and feet cutting can accomplished at the same time.
3, The components lead can be adjustable.
4, Import Japan brand steel balde, long lifespan, also can be sharpened, no need to switch balde.
5, Driving motor and electric components all use high quality Taiwan brand.
6, Can forming the components to U type(horizontal), or F type(vertical), this two type can not use at the same time.
7, Also the U type has another forming sharp called US type, that for the small span components.
8, The mahine body is made of high quality steel, durable and thick.
Specification
| Model: | HS-106 | |||
| Voltage: | 220V 50/60Hz | |||
| Capacity: | 40000-60000pcs/hrs | |||
| Machine dimension: | 400*250*190mm | |||
| Weight: | 20kg | |||
