| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-500LC |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 9~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 200 sets per month |
| Product Name: | PCB Lead Forming Machine | Other Name: | PCB Board Feet Cutting Machine |
|---|---|---|---|
| Voltage: | AC220V, 50/60Hz | Efficient PCB Size: | 400*250mm |
| Min Lead Height: | 1.0-1.5mm Min | Warranty: | One Year |
| High Light: | lead forming equipment,pcb lead cutting machine |
||

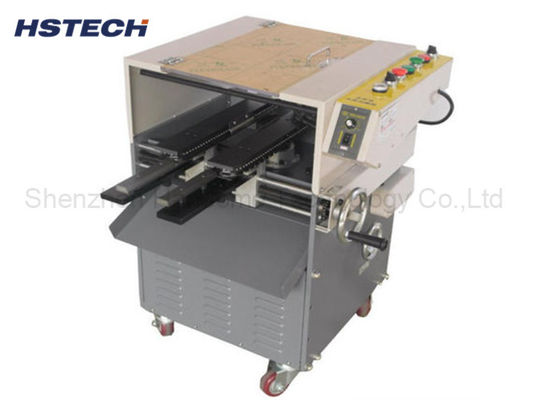

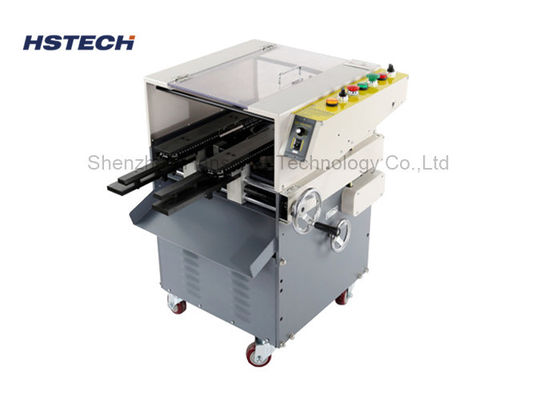

Width Adjustment Button Control Visiable PCBA Lead Forming / Cutting Equipment
Introduction
1, The machine is designed to trim the wire leads of PCB assembly after soldering process.
2, The fast turning tungsten carbide blade cuts the wire leads while feeding the PCB one by one to the equipped track manually.
3, For safety, it is absolutely required to push the PCB assembly by handle.
4 This machine is for trimming the wire lead of electronics components only.
Feature
1, Automatic input and output the PCB, cutting the PCB lead after the welding.
2, High stability, it can connect with the automatic soldering machine or AI machine.
3, Applies to the finger type slid to fasten the PCB board.
4, Finger slid change easy and economic.
5, With the prevent bending device, to overcome the bending PCB in welding.
6, Input speed can be adjusted, max. speed is 3m/min.
Specification
| Model | HS-500LC |
| Power | AC220, 50/60Hz/380V,50/60Hz |
| Max. PCB size | 500mm(L) x 300mm(W) |
| Main axis speed | 4500/Min |
| Main axis motor | 3/4 Hp |
| Guide rail speed | 0-3 M can be adjustable |
| Min. lead height | 1.0-1.5mm Min |
| Machine Demension | 900*670*800mm(W*D*H) |
| Net Weight | 115KG |
