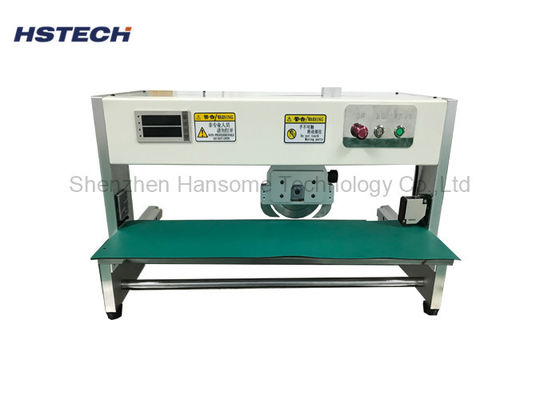

400mm Length PCB Board Cutting Machine Circular Blade Moving Low Force Stress

400mm Length PCB Board Cutting Machine Circular Blade Moving Low Force Stress
400mm Length PCB Board Cutting Machine Circular Blade Moving Low Force Stress

Large Image :  400mm Length PCB Board Cutting Machine Circular Blade Moving Low Force Stress

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: Blade Miving PCB Separator Other Name: V-cut PCB Cutter Machine
Warranty: 1 Year Usage: PCB Board,aluminum Board,Cut V-cut Pcb
Condition: New Quality: Durable,high Rank
High Light:

v cut pcb depanelizer

,

pcb board cutting machine

Circular Blade Moving 400mm Length PCB Separating Cutter Machine



Introduction



This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.



Features



1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.



Specification



Model HS-300
Voltage 110V/220V(optional)
Power 100W
Efficient cutting length 5-360mm
Blade size Circular blade φ125*3mm, Linear blade 360*45*6mm
Blade material Import high quality high speed steel tool
Separating speed 300mm/s
V-cut thickness 1/3 of the board
Separating width Best 1-200mm
Machine size 620*320*450mm
Weight 50kg
