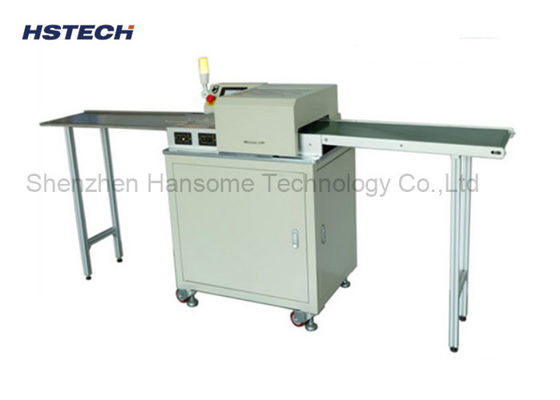

Aluminum Board PCB Depaneling Equipment Multiple Blade For LED Strip / Tube light

Aluminum Board PCB Depaneling Equipment Multiple Blade For LED Strip / Tube light
Aluminum Board PCB Depaneling Equipment Multiple Blade For LED Strip / Tube light

Large Image :  Aluminum Board PCB Depaneling Equipment Multiple Blade For LED Strip / Tube light

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-F380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month

Aluminum Board PCB Depaneling Equipment Multiple Blade For LED Strip / Tube light

Description
Product Name: Multiple Blade LED Strip Machine Other Name: LED Tube Light Separator
Voltage: AC220V/110V,optional Blade: CAB Brand Circular Blade
Machine Power: 200W Warranty: 1 Year
High Light:

pcb depaneling machine

,

v cut pcb depanelizer

Multiple Blade Aluminum Board PCB Depaneling Machine for LED Strip / Tube light



Features



1, Multiple groups, multiple blade separating at the same time, greatly lower the separating force stress, protect the boards without bent.

2, SMEMA signal, connect with the PCB, achieve the automatic depaneling.

3, This machine designed for LED lighting industry, especially for LED tube, whole LED hard strip light, and other strip boards.

4, PLC and touch screen control.

5, Infrared light curtain sensor, high security.

6, Using Japan high speed steel blade.

7, Min distance between balde is 3mm, blade thickness is 0.2mm.

8, High efficiency, saving labor, 100,000 pcs products production per day.



Specification



Model HS-F380
Production name Multiple blade PCB depaneling machine
Machine dimension 2200mm×580mm×1060mm
Blade dimension Circular blade ϕ60mm×35mm×3mm
Blade average lifespan 1,000,000 times (1.2m long , 3mm thick PCB)
Separating thickness 0.8~3mm, 1/3 of the board thickness
Voltage AC220V/110V, 50/60Hz
Machine power 200W
Air supply No
Machine power 90W
Separating speed 1mm-2000mm/s
Separating length 100mm-unlimited
Separating width 4-100mm best, single board width,not whole pin board width
Suitable boards LED strip board/LED tube,aluminum baord and fiber glass boards
Weight Around 160kg



Details



Aluminum Board PCB Depaneling Equipment Multiple Blade For LED Strip / Tube light 0



Aluminum Board PCB Depaneling Equipment Multiple Blade For LED Strip / Tube light 1
