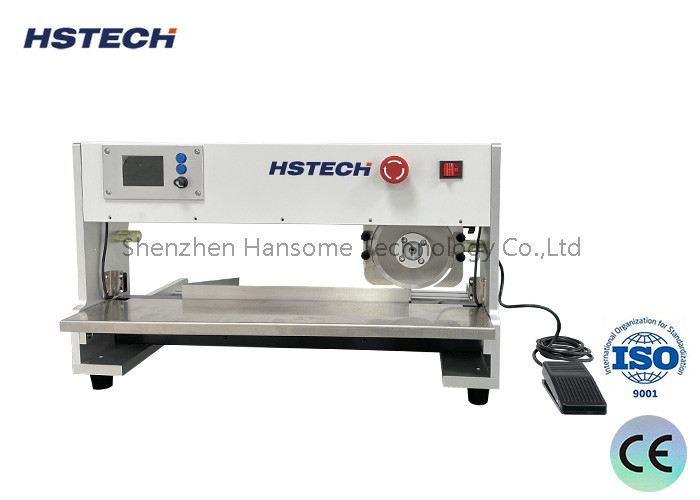

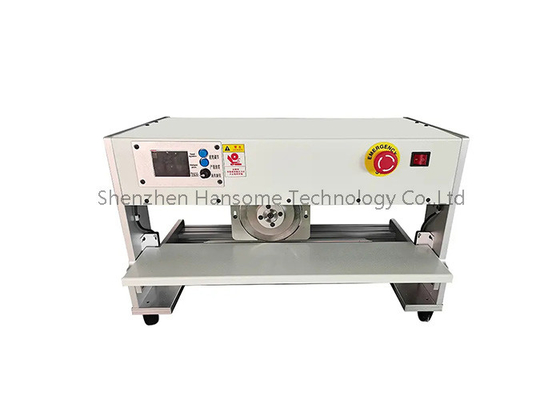

Blade Moving PCB Depaneling Equipment Board Separating PCB Depanelizer With Counter

Blade Moving PCB Depaneling Equipment Board Separating PCB Depanelizer With Counter
Blade Moving PCB Depaneling Equipment Board Separating PCB Depanelizer With Counter

Large Image :  Blade Moving PCB Depaneling Equipment Board Separating PCB Depanelizer With Counter

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-206
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week

Blade Moving PCB Depaneling Equipment Board Separating PCB Depanelizer With Counter

Description
Product Name: Blade Moving PCB Separator Other Name: V-cut PCB Separating Machien
Blade: Circular/linear Blade Combined Switch: Foot Switch
Suitable Board: FR4,aluminum,fiber-glass Board,LED Board,LED Strip Color: White
Pcb Thickness: 0.8mm -3mm PCB Length: Max 600mm
High Light:

pcb depaneling machine

,

pcb board cutting machine

Blade Moving 600mm Cutting Length V-cut PCB Separating Machine with Counter



Features



1, Max cutting length 600mm, or optional 400mm max length.

2, Circular blade and linear blade work together, circular blade moving separating.

3, Blade Moving 600mm Cutting Length V-cut PCB Separating Machine with Counter

4, The max cutting width is unlimited, single PCB best at 1~200mm.

5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.

6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.



Specification



Model HS-203 HS-206
Principle Board insert to the V-slot,blade moving cutting
Blade Bottom linear balde, upper circular blade
Voltage AC110V/220V 50/60Hz
Blade size(circular blade) ϕ125mm*30mm*3mm
Blade size(linear blade) 420mm×65mm×6mm
Max cutting length 5~400mm 5~600mm
PCB thickness 0.8~3mm
Separation speed 300~500mm/second(adjustable)
Separation width Best 1~200mm
Components height ≤32mm( or customized)
Power 60W
Machine dimension 710x450x420mm 900x450x420mm
Weight 55kg 75kg



Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)



Blade Moving PCB Depaneling Equipment Board Separating PCB Depanelizer With Counter 0
