| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-S5331R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam inside |
| Delivery Time: | 7~10 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
| Product Name: | Automatic Soldering Robot | Soldering Head: | Single |
|---|---|---|---|
| If Rotation: | Yes | Voltage: | 220V/110V, Optional |
| External Communication: | RS232 | Work Table: | Dual |
| Programing: | Teach Pandent | ||
| High Light: | automated soldering equipment,robotic soldering machine |
||

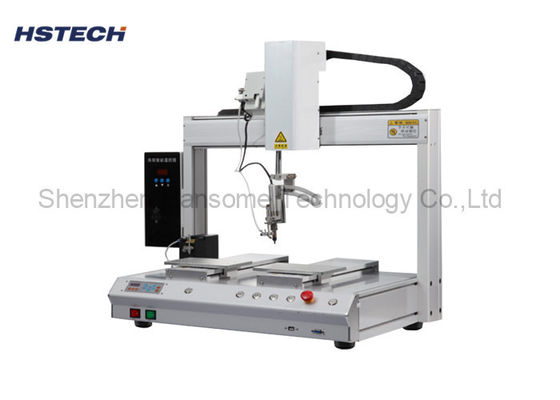

Single Double Y Platform Temperature Control 5 Axis Automatic Soldering Robot
Introduction
We call this soldering robot a 5 axis soldering machine, it based on a 4 axis soldering robot and plus a 360 degree rotation R axis, so it has larger soldering range.
Application
1, Semiconductor Products
2, optical products
3, Electronic Products
4, General home appliances
5, Precision Machines/Electrical Products
6, Large-scale mechanical products
7, General Consumer Goods
Features
1, 5 axis soldering.
2, Stepper motor control.
3, Heating and broken tin control.
4, High quality Hiwin Linear guide, ensure the moving smooth and flat.
5, Flexible soldering, available for spot soldering, drag soldering and other functions.
6, The machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
7, Teach pandent programing, can save max 99 groups programs,
8, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.
Specification
| Model | HS-S5331R |
| Power supply | Meanwell driver AC110V/220V |
| Air pressure | 0.45-0.5Mpa |
| Axis | 5 |
Moving range |
X 500mm |
| Y1 300mm | |
| Y2 300mm | |
| Z 100mm | |
| R 360degree | |
Moving speed |
X/Y1/Y2 1-600mm/s |
| Z 1-300mm/s | |
| R 1-100mm/s | |
| Transport method | Linear guide |
| Repeat accuracy | ±0.05mm |
| Platform load capacity | 10kg |
| Z Axis load capacity | 5kg |
| Y platform size | 190*150mm |
| Heater power | 150W |
| Edit mode | Handle panel |
| Program capacity | 99 |
| Communication port | RS232 |
| Feeding | Single tin feeding system |
| Solder tin diameter | 0.3-1.5mm |
| Machine dimension | 720*580*645mm |
| Net Weight | 65kg |
