| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | DZ-400T |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case, with foam |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Product Name: | Industrial Vacuum Sealing Machine | Other Name: | Vacuum Packaging Machine |
|---|---|---|---|
| Sealing Type: | Double Sealing | Vacuum Chamer Size: | 440x420x75mm |
| Driven Type: | Electric And Pneumatic | Condition: | New |
| Certification: | CE | ||
| High Light: | industrial vacuum sealer machine,commercial vacuum packaging machine |
||

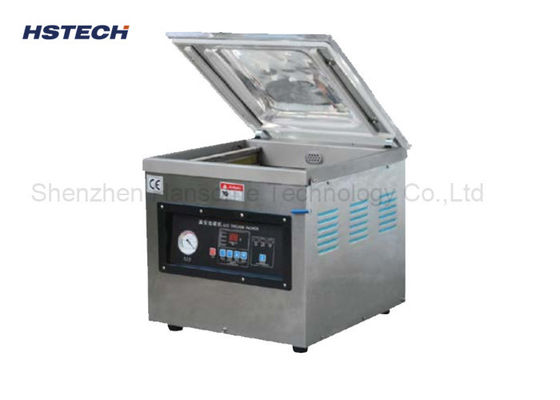

Double Sealing Single Chamber Vacuum Packing machine with Air Pressure
Introduction
This machine used to vacuum packing to avoid moisture and oxidation, it widely used to pack Semiconductor, IC reel, mobile phone display, touch screen,PCB, FPCB, and other electronic products. Also used in food industry.
Features
1, Double Sealing bar, much more efficiency than single sealing model.
2. Bigger sealing chamber, can packing some big size bags.
3. The vacuum packaging items in a sealed state to prevent oxidation, mildew, insects, moisture, extend product storage period.
4. Transprent cover, operator can watching the whole packing process.
5. Fast packing time, can packing many times per minute.
6, Used in many industry, small volume and convenient.
Specification
| Model | DZ-260T | DZ-300T | DZ-400T |
| Chamber size | 380×280×55mm | 380×320×55mm | 440×420×75mm |
| Sealing size | 260×330mm(single sealing) | 330x320mm(single sealing) | 400×310mm(double sealing) |
| Air pressure | -0.1Mpa | -0.1Mpa | -0.1Mpa |
| Capacity | 1-3 times per min | 2-4 times per min | 3-6 times per min |
| Voltage | 1phase 110V/220V, 50/60Hz | 1phase 110V/220V, 50/60Hz | 1phase 110V/220V, 50/60Hz |
| Power | 0.75KW | 1.0KW | 1.5KW |
| Machine size | 500×340×370mm | 500×380×370mm | 540×490×530mm |
| Weight | 40kg | 50kg | 80kg |
